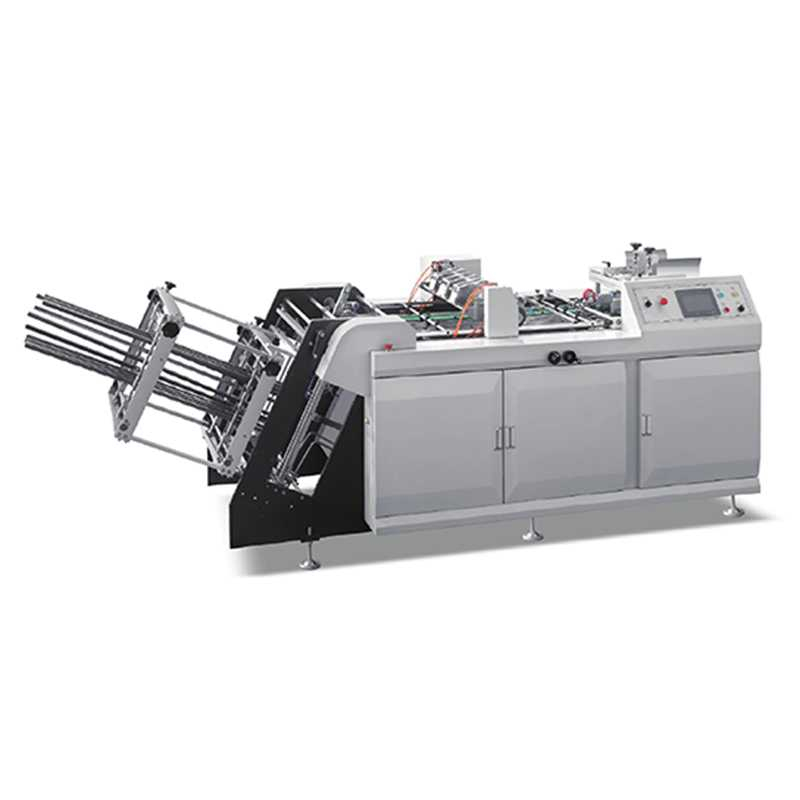

Automatic Paper Lunch Hamburger Box Making Machine

Production Capacity	50-180 pcs/min
Suitable Material	200-600gsm cardboard paper,PE coated paper, Kraft paper, corrugated paper
Paper open length	L100-450mm,degree:5°--40°
Paper open width	B100-600mm Height H15-200mm
Total Power	5KW
Weight	1.7T
Dimension	3600 x1400 x 1700 mm
Power source	380V 50HZ

Main Features:

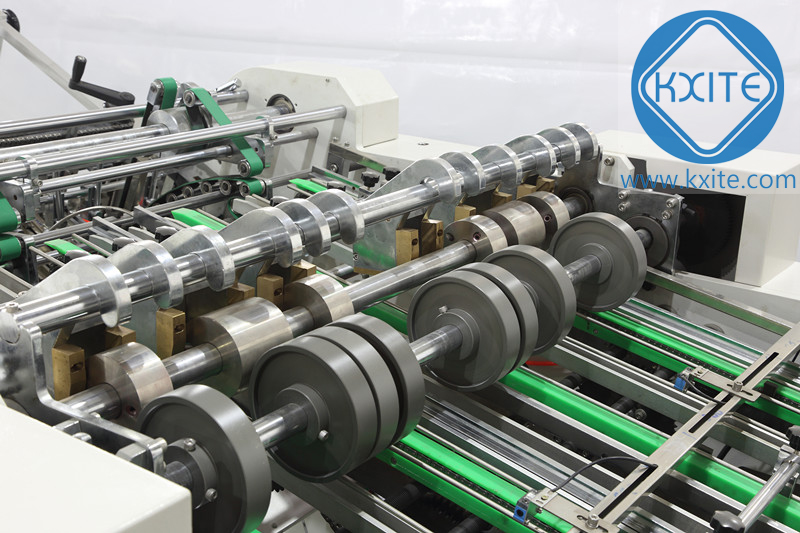

1.The chain drive is adopted in the machine to ensure the smooth running, and endurable structure. Each part is separated to
reduce noise and workload, as well as to increase the stability.
2.Time of paper feeding is adjusted by cam. Simply operating, reducing failure rate.
3.Automatic gluing systems controlled by reduce motor from Taiwan. Gluing point is mad.
4.Every part of forming and collecting system can be adjusted according to the size of mold. The whole collection system can be opened to change mold and install the forming parts conveniently.
5.It adapts paper tape counting equipment to count product quickly and accurately, and to be readjusted.
