SHL-1582
KXITE
8422301090

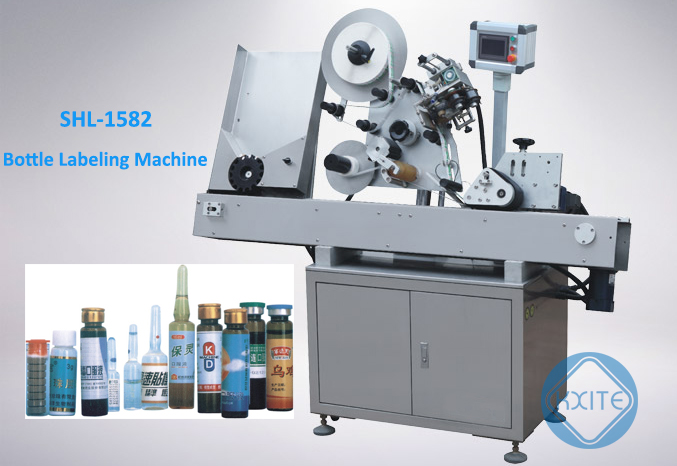

China Automatic Sticker Ampoule Horizontal 10-20ml Oral Liquid Bottle Labeling Machine(SHL-1582)

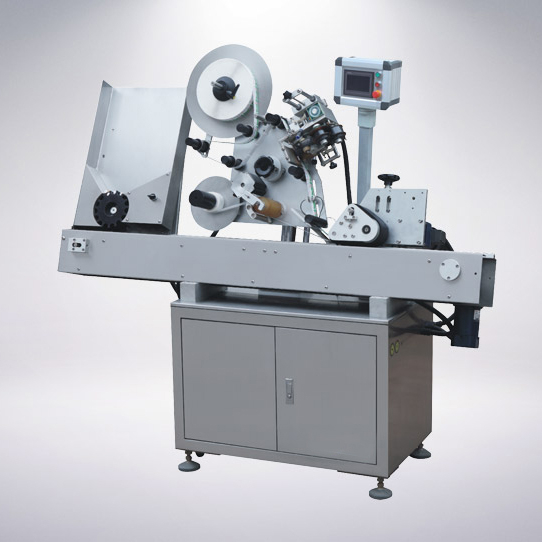

Product picture
2、 Performance characteristics
Motor system:
The labeling host adopts 5-phase stepping system. The resolution of 2-phase, 5-phase and micro stepping system is different. The motor of 2-phase stepping system can be divided into 400 grids per revolution, and the motor of 5-phase stepping system can be divided into 1000 grids per revolution. The micro stepping system has the best performance, short acceleration and deceleration time, and low dynamic inertia. It is suitable for the driving of labeling machine with high precision.
Operation mode:
It adopts simple button type operation panel, which is simple and convenient for maintenance. It can go online easily without any experience, greatly reducing personnel training time.
Mechanical design:
1. Super wear resistant label rolling mechanism, exclusive use of polyurethane material, durable and non wear.
2. Advanced plum wheel feeding mechanism, simple, stable and reliable, not fragile bottle.
3. The imported bearing is used to install the conveying roller to make the pasted object roll sensitively and ensure the quality of labeling.
4. The stable and durable base and various parts are designed with standardized modular design, which is fully interchangeable and can operate 24 hours to ensure safety and stability.
5. The chassis is made of stainless steel SUS304 and T6 aluminum alloy, which will never rust and meet the requirements of GMP pharmaceutical factory.
6. Dynamic synchronous tension control supply label, stable and fast supply, ensure the speed and precision of label delivery.
7. Wheel attached rolling bottle makes the label more firmly attached.
8. Label synchronous positioning mechanism, label positioning error is plus or minus 1 mm.
9. Multi point emergency stop button, which can be installed in the appropriate position of the production line to ensure safe operation and smooth production.
10. Scope of application: it can be used for the labeling of ampoules, oral liquid and other slender bottles.
technical parameter
Voltage specification | AC220V 50 / 60Hz single phase |
Power consumption | 1.2KW |
Labeling speed | 0-220 bottles / min (depending on bottle size, label length and feeding speed) |
Labeling accuracy | Plus or minus 1 mm (except the error of bottle and label itself) |
Scope of application | Outer diameter 10-30mm, height 35-90mm (can be customized according to specific requirements) |
Applicable label scope | Height 15-90mm, length 23-30mm |
Maximum label supply | Diameter 350mm, inner diameter 76mm |
Label parameters: | |
Backing paper | It needs to choose 62 grams of white grazin base paper, which is compact and has good internal strength and light transmittance, firm and not easy to tear. Die cutting performance is excellent. |
Basic gram weight | 62g / m2 ± 5% thickness: 55 μ m ± 5% |
Tensile force | Machine direction: 16KG / 25mm Transverse: 7kg / 25mm |
Transparency | 52% |
Label spacing | 3-4mm±0.2mm |
Distance between the top and bottom edge of label and the top and bottom edge of backing paper | 2mm |
Sample:
