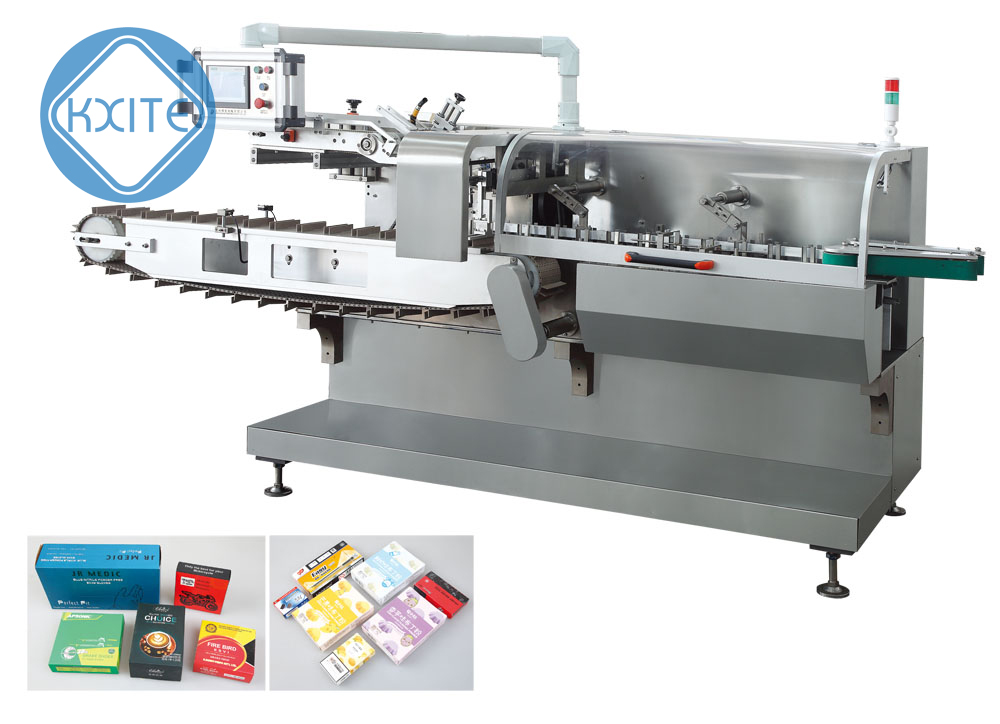

Full Automatic Ointment Toothpaste Tube Box Packing Machine for Commodity Cartoning Machine

cartoning machine is used to package items with regular, traditional shapes, then send them out. It is often used for pharmaceutical, food, cosmetics and other items.
Availability:
Quantity:

Cartoning machine is used to package items with regular, traditional shapes, then send them out. It is often used for pharmaceutical, food, cosmetics and other items.

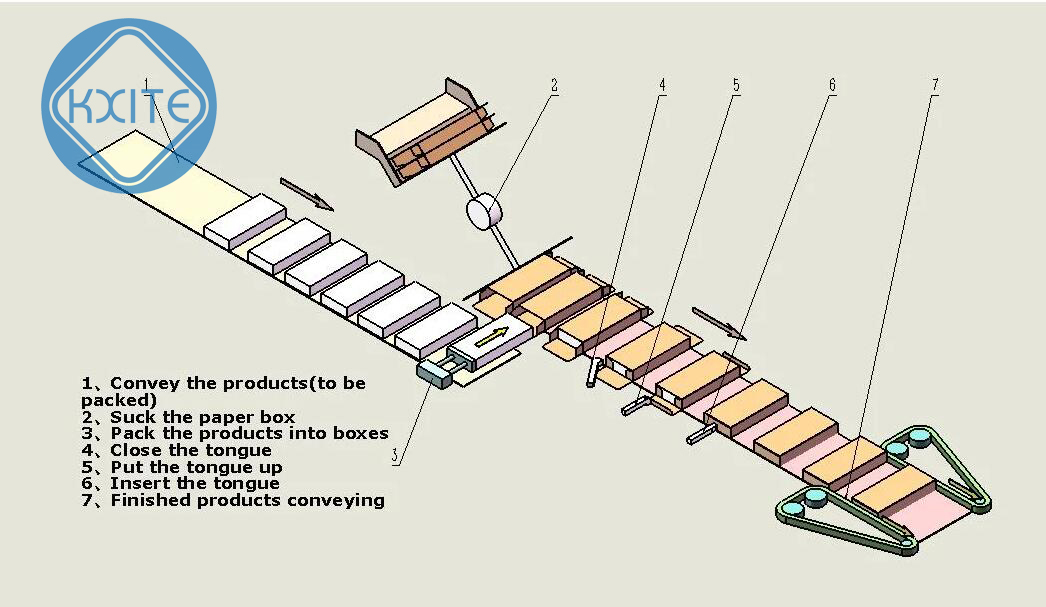

This packaging machine can automatically fold instruction booklets, open cartons, pack objects and instruction booklet, print batch numbers, seal packages and eliminate waste, with no manual labor required. It is controlled by a PLC system and monitored at each step using an electro-optical tracking system. If any problems arise, the machine will shut down automatically and show the problem in order to solve and prevent more problems. The cartoning machine is fully certified to GMP standards.

It can handle packages of aluminum-to-aluminum, aluminum-to-plastic or aluminum-plastic-aluminum. For added efficiency, pair the equipment with blister pack cartoning equipment.

Features

This cartoning machine can automatically deliver materials, fold instruction booklet, open cartons, pack objects and instruction, seal packages and eliminate waste efficiently. It is also easy to operate.

This packaging machine has a stable structure and a low noise level.

It can pack a large range of products and it is easy to install and run.

There is an easy to use man to machine interface.

The packaging equipment makes use of a detection system and protection equipment to ensure packaging quality and operation safety.

This packaging machine can also be equipped with an attractive, easy to use flip-up protective cover to meet customer requirements.

When there is no carton, items will not be packed, the machine will stop automatically and sound an alarm.

When there is no instruction manual, items will not be packed, and empty cartons will be eliminated. The machine will automatically stop and sound an alarm.

This machine is able to eliminate packages that have no products or instruction manuals in them, ensuring the output packages qualified.

The cartoning machine is very easy to operate. 1-2 operators is enough, as most of the process is fully automatic.


Packing Speed20-100 boxes/min(Products related)
Paper/Carton BoxSpecification250-350g/m²( According to the size of box)
Range of Box Size(55-300)×(30-170)×(15-50)mm

Instructions
Specification55-65g/m²
Unfolded Size Range(100-250)×(100-190)mm
Folded Range1-4 Fold
Compressed AirWorking Pressure0.5-0.7Mpa
Air Consumption0.2m³/min
Total Power380V/220V 50Hz 1.5Kw
Main Motor Power1.5kw
Overall Dimension4100×1350×1450mm
Weight1800kg
