| Model of cutting paper: | |
|---|---|
| Thickness of cutting paper: | |
| Quantity: | |

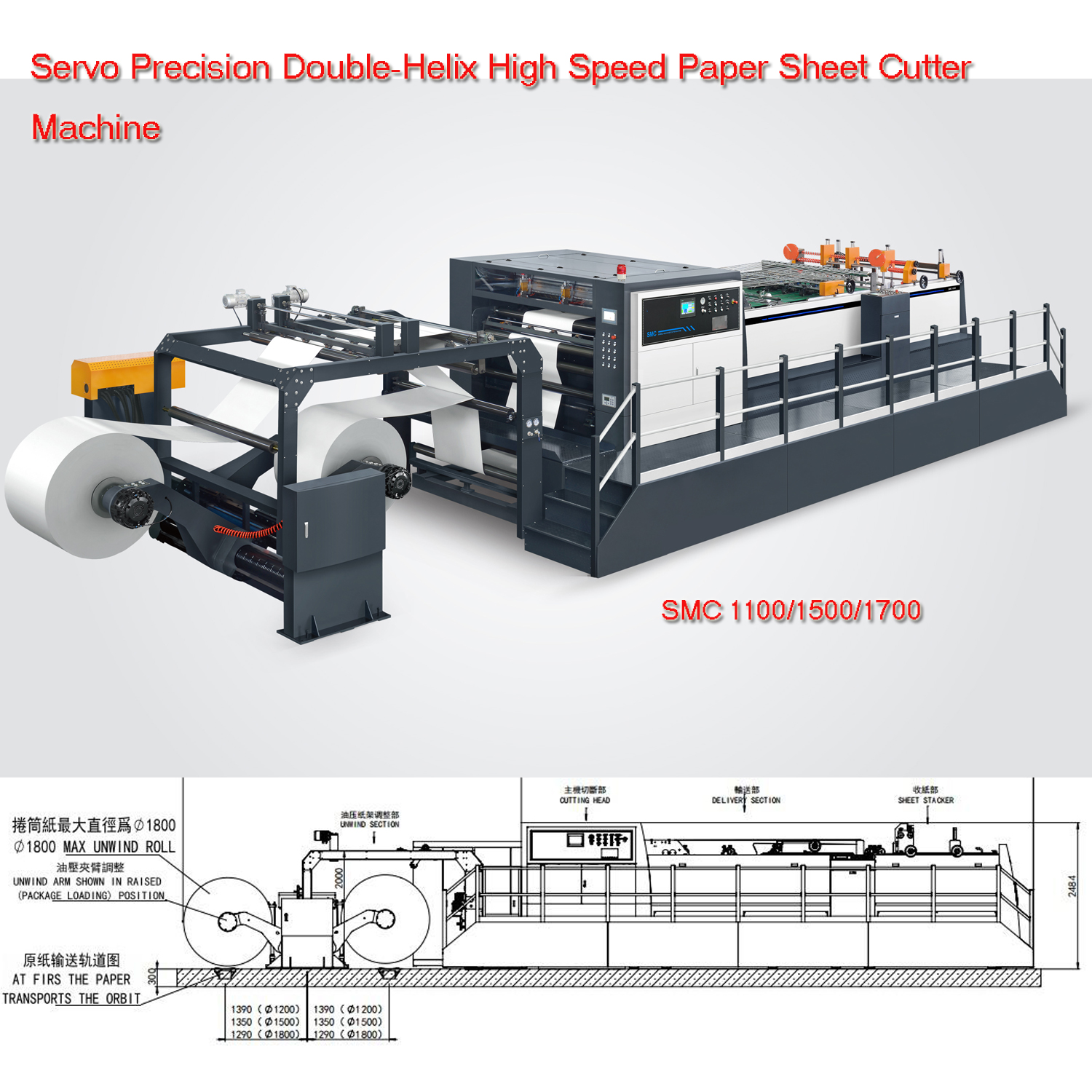

SMC 1100/1500/1700
KXITE
Double rotary spiral cutter rollers can cut paper clearly in less force; German precision bearing and cutting knife achieve high cutting precision; Touch interface control is easy to operate: The reasonable infection device can remove the cured paler effectively, thus strenath tension of the paper rol. heets can directly into printing without trimming after cutting, which do improve economic effciency,reduce production costs

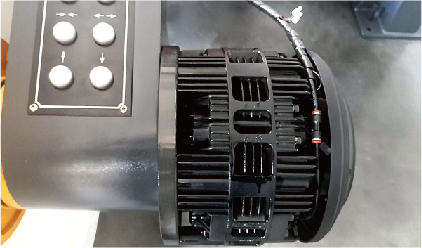

Auto brake
Auto anti curve
Auto tension control
Auto edge position correction

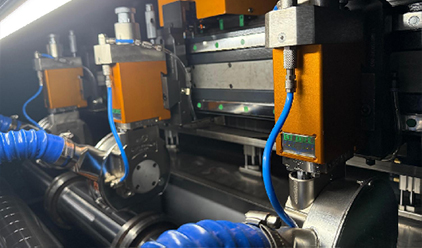

Auto positioning slitting system
Paper pre-press device
Embedded double helix knife(invention patent)
Reject gate

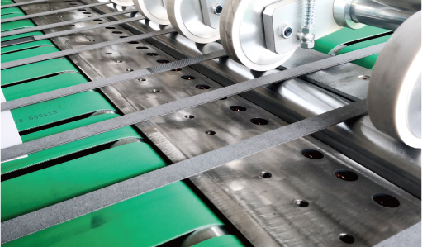

Anti-static device
3 times delivery(no impression line)
Collecting board pneumatic lifting device
Siemens plc system
Model | SMC-1100/1500/1700 |
Model of cutting paper | Double rotary sheeter |
Thickness of cutting paper | 80-1000GSM |
Cutting length range | 450-1650mm |
The format of slitting | 2 sheet(Optional) |
Cutting precision | Cutting length≤1000mm: ±0.1mm |
Max. cutting meter speed | 330 m/min |
Max. cutting speed | 540 cuts/min |
Max. scroll diameter | 1800mm |
Max. paper cutting width | 1100(45”)mm |
Max. paper piling height | 1600mm |
The request for air compressor | 0.8Mpa |
Power consumption | 380V/220VⅩ50Hz |
Gross weight | 21000/23000/26000kgs |
Full-load power | 75/88/88kw |
Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
450 | 125 | 275 |
500 | 160 | 315 |
600 | 210 | 350 |
650 | 250 | 380 |
700 | 290 | 410 |
750 | 330 | 440 |
800 | 330 | 410 |
900 | 330 | 365 |
1000 | 330 | 330 |
1100 | 310 | 280 |
1200 | 300 | 250 |
1300 | 300 | 230 |
1400 | 300 | 210 |
1500 | 300 | 195 |
1600 | 300 | 188 |
1650 | 300 | 185 |
