Machine Size: | |
---|---|
Weight: | |
Punch frequency : | |
PVC hard pieces: | |
Max. Capacity: | |
Aluminum laminated foil: | |
Max Formed area and depth: | |
Availability: | |
Quantity: | |
DPB-80
KXITE
8449009000

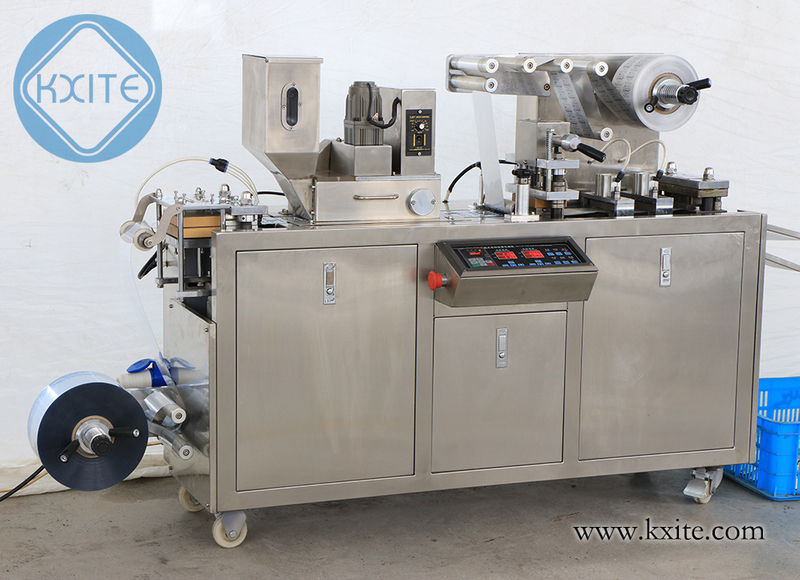

1) It can automatically finish forming, filling, packing, printing and cutting in one machine.
2) The bottom film which can use in this machine is thermoformable, heat sealable semi-rigid film and rigid film such PS, PE, PET, PVC ,etc.
3) This new min type automatic blister packing machine is widely used in foodstuff industry and dairy products. It can pack honey, cheese, jam, chocolate, milk, butter, olive oil etc..
4) PVC roll——PVC heating——PVC forming —— Automatic cooling —— Automatic liquid feeding —— PE/ALU foil/paper card sealing —— Printing batch —— Cutting —— Products output
1) It can automatically finish forming, filling, packing, printing and cutting in one machine.
2) The bottom film which can use in this machine is thermoformable, heat sealable semi-rigid film and rigid film such PS, PE, PET, PVC ,etc.
3) This new min type automatic blister packing machine is widely used in foodstuff industry and dairy products. It can pack honey, cheese, jam, chocolate, milk, butter, olive oil etc..
4) PVC roll——PVC heating——PVC forming —— Automatic cooling —— Automatic liquid feeding —— PE/ALU foil/paper card sealing —— Printing batch —— Cutting —— Products output
Punch frequency | 10-33pcs/min | PVC hard pieces | 0.15-0.55x110mm |
Max. Capacity | 3000pcs/hour | Aluminum laminated foil | 0.02-0.09 x110mm |
Max Formed area and depth | 70x100x25mm | Dialysis paper | 0.02-0.035x110mm |
Standard travel range | 30-70mm (adjustable) | Mould cooling | Tap water or recycle water |
Air pressure | 0.6-0.8Mpa | Overall dimension (L x W x H) | 1700x700x1750mm |
Total power | 380V/220V 50Hz 3.5kw | Weight | 500kg |
Motor power | 0.75kw | Noise indicators | ≤75dBA |
Punch frequency | 10-33pcs/min | PVC hard pieces | 0.15-0.55x110mm |
Max. Capacity | 3000pcs/hour | Aluminum laminated foil | 0.02-0.09 x110mm |
Max Formed area and depth | 70x100x25mm | Dialysis paper | 0.02-0.035x110mm |
Standard travel range | 30-70mm (adjustable) | Mould cooling | Tap water or recycle water |
Air pressure | 0.6-0.8Mpa | Overall dimension (L x W x H) | 1700x700x1750mm |
Total power | 380V/220V 50Hz 3.5kw | Weight | 500kg |
Motor power | 0.75kw | Noise indicators | ≤75dBA |
