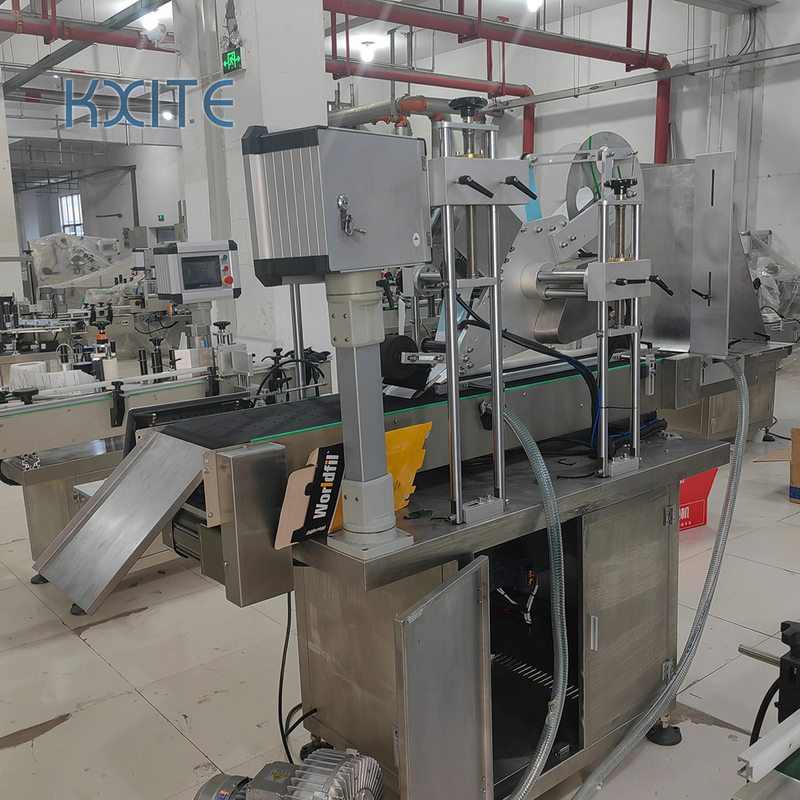

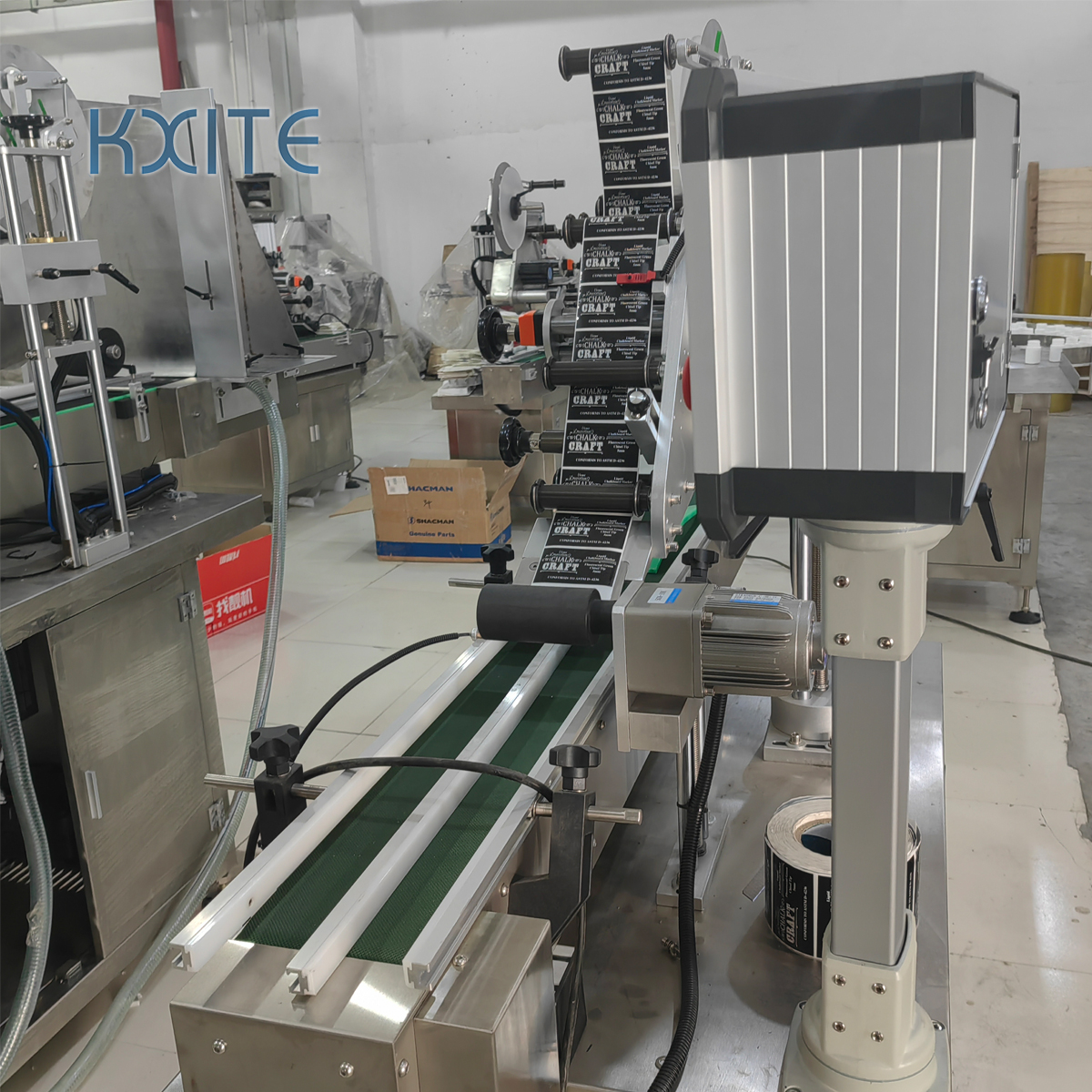

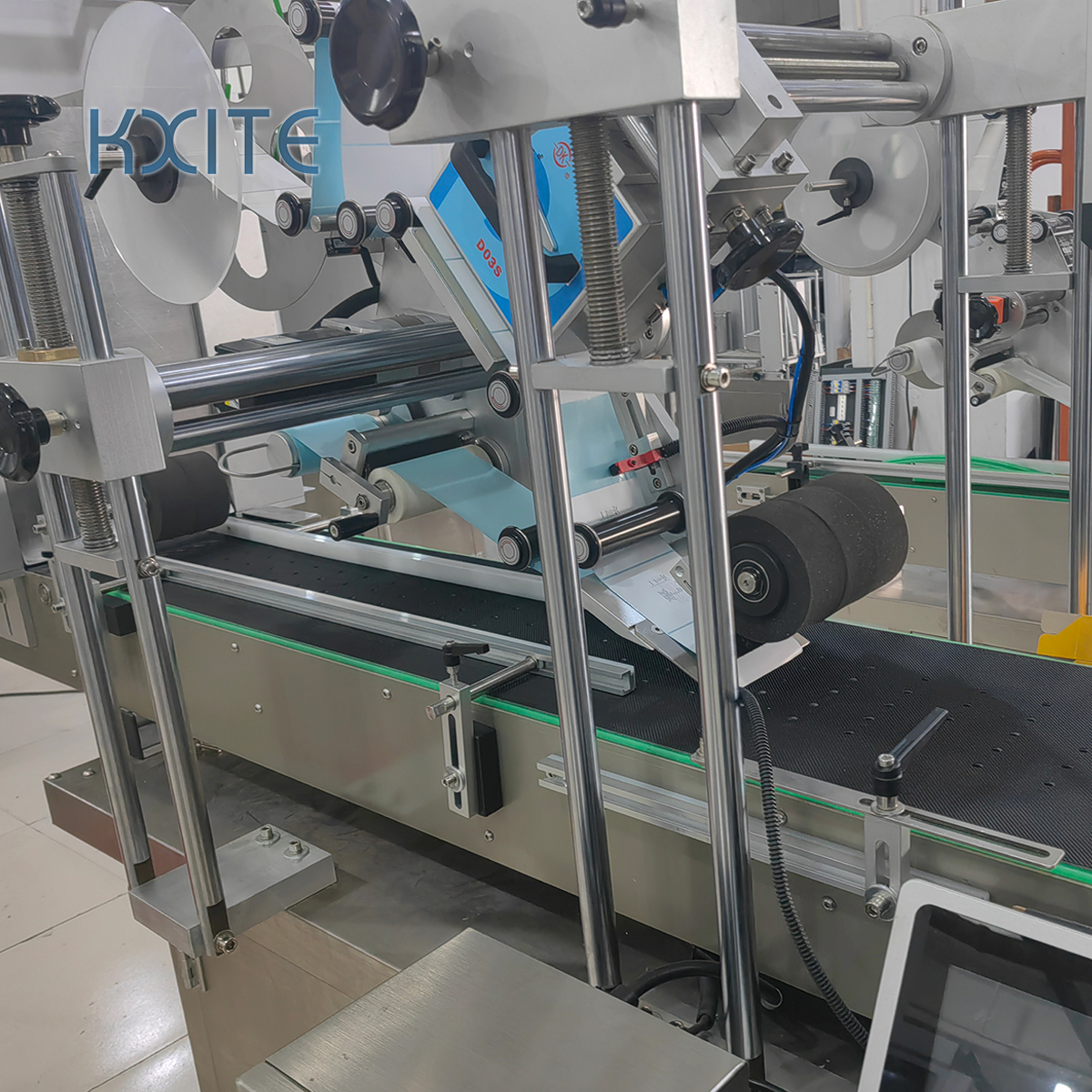

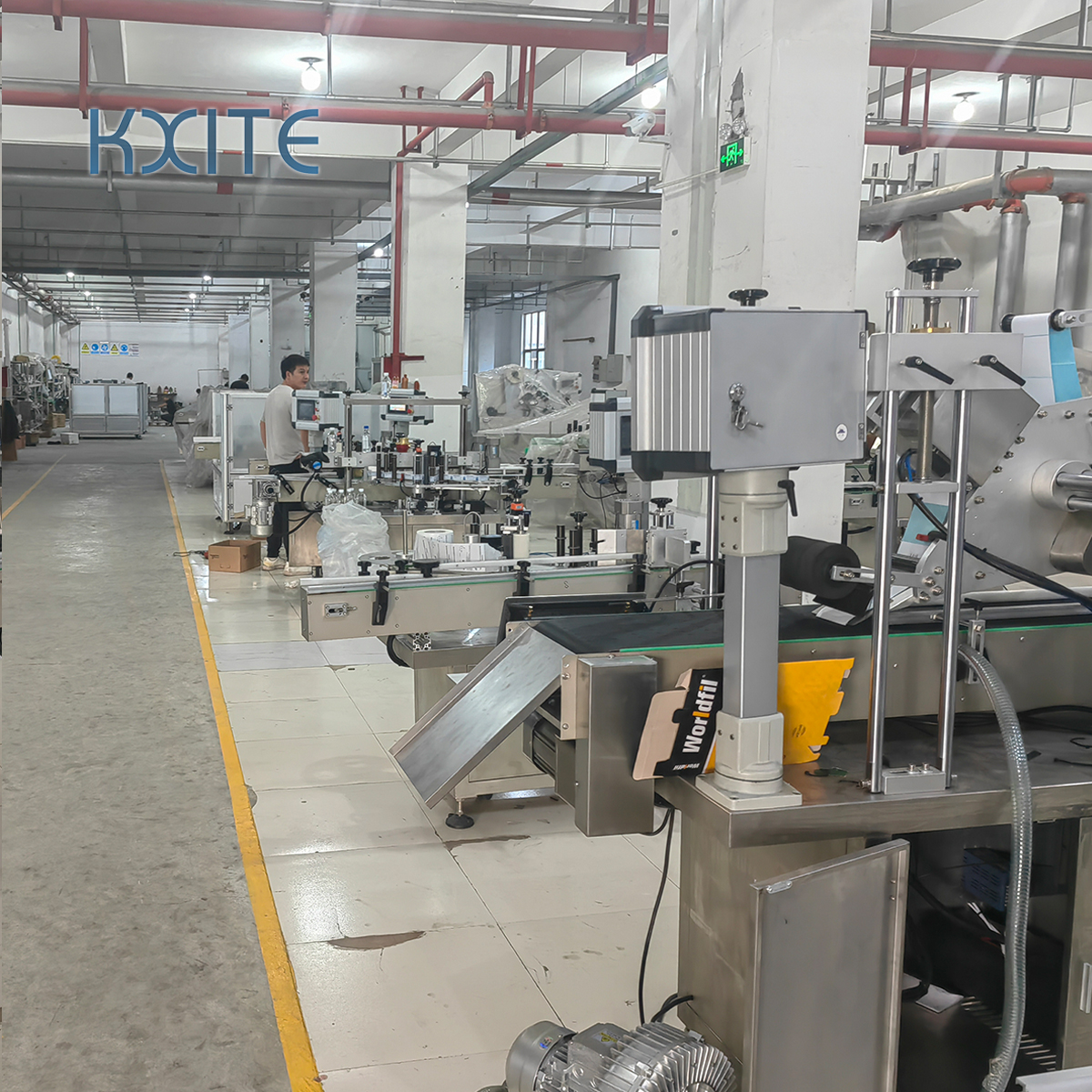

Automatic Flat Surface Applicator Sticker Plane Labeling Machine

1、BASIC USING

Applies to the various items attached to the upper surface of labels or adhesive film, such as books, folders, boxes, cartons, etc.,

suitable for replacing scale mechanism cover uneven surface labeling, the product is widely used in large flat labeling ,

size range large flat object class labeling.

Optional printer or inkjet printer head to the labeling, can be realized on the label printing production date, batch and print barcodes

and other information.

Optional inkjet printer to a conveyor belt, can be realized before or after labeling on the product and printing production date,

batch number, bar code and other information.

2、APPLICATION

1、For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.

2、Applicable products: Requirements in the plane, a large curvature surface or membrane attached label products.

3、Industry: Widely used in printing, stationery, food, daily chemical, electronics, pharmaceutical, and other industries.

4、Application: flat labeling books, folders, labeling, packaging and labeling boxes, plates labeling and so on.

3、WORKING PROCESS

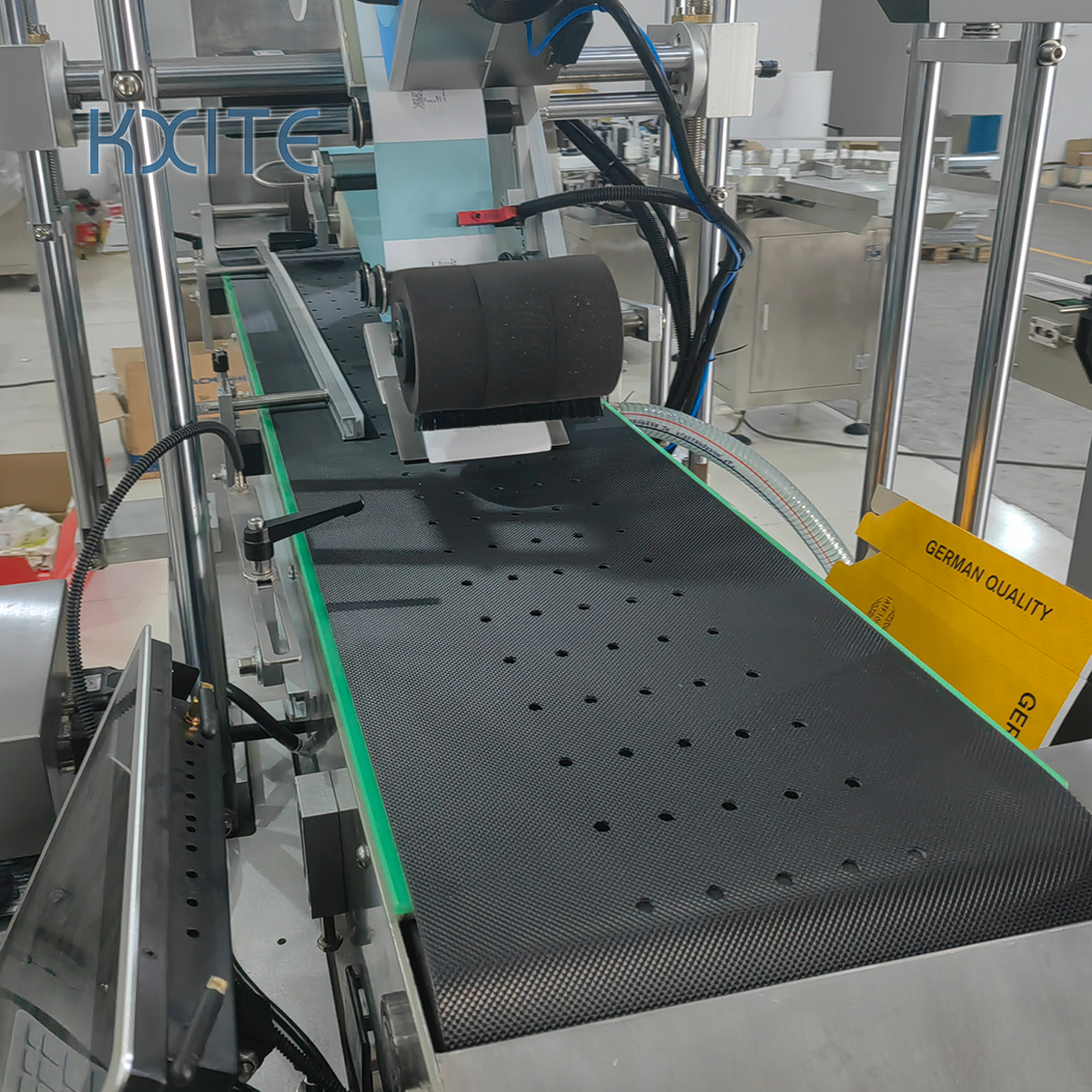

Core Working principle: The sensor detects the product passes the signal returned to the labeling control systems,

signal processing through the PLC, sent at the appropriate time on the product label attached to the set position,

the product flows through the overlying standard device label securely covered , a label attached to the action is completed.

Procedure: put the product (which can be accessed line) -> Products delivery (automatically) -> Product correct (automatically) -> Product Testing (automatically) -> Labeling (automatically) -> follow standard (automatically ) -> collect the labeling products.

4、TECHNICAL PARAMETERS:

 Applicable Length of Label: 6mm ~ 250mm

Applicable Label width (backing paper width): 20mm ~ 150mm

Applicable Dimensions (length × width × height / thickness): Length: 40mm ~ 400mm,  Width: 40mm ~ 200mm,  Height: 0.2mm ~ 150mm

Applicable standard roll diameter (mm): φ350 mm below are available

Applicable standard roll diameter (mm): φ76mm

Labeling accuracy (mm): ± 1mm

The standard speed (m / min): Stepping: 19m/min,  Servo: 25m/min

Labeling speed (pcs / min): Stepping: 40 ~ 150pcs/min,  Servo: 50 ~ 200pcs/min

Conveyor speed (m / min): Stepping: 5 ~ 19m/min,  Servo: 5 ~ 25m/min

Weight (kg): about 180kg

Frequency (HZ): 50/60HZ

Voltage (V): 110/220V

Power (W): 500W (traction stepper),  950W (traction servo)

Device dimensions (mm) (L × W × H): 1600mm × 780mm × 1400mm

5、FEATURES

1、wide range of applications to meet the product width 30mm ~ 350mm product labeling and self-adhesive film plane,

the replacement of covered institutions to meet the standard uneven surface labeling;

2、labeling accuracy is high, stepper motor or servo motor to send standard, send standard precision; marked with detour

corrective institutions designed to ensure that the process is not about labels traction offset; eccentric technology for traction,

traction tag non-skid, to ensure a standard precision;

3、rugged, using three adjustment mechanism, take advantage of the stability triangle, the whole solid and durable;

4、high stability, Panasonic PLC + touch screen + Panasonic Matsushita Electric eye needle + German Leuze label sensor

composed of advanced electronic control systems, support equipment 7 × 24-hour operation;

5、adjustment simple design 6-DOF adjustable seat adjustment, conversion between different products easier, time-saving;

6、Flexible application can pick single production or assembly line production, the production site layout is simple;

7、intelligent control, automatic photoelectric tracking, with no object no labeling, no label auto-correction and auto-detection function labels, stickers and labels to prevent leakage of waste;

8、touch screen interface, the whole Chinese notes and complete failure prompts, simple and quick to adjust various parameters;

9、powerful, with production counting function, power saving features, the production number setting prompts, parameter setting

protection function to facilitate the production and management;
