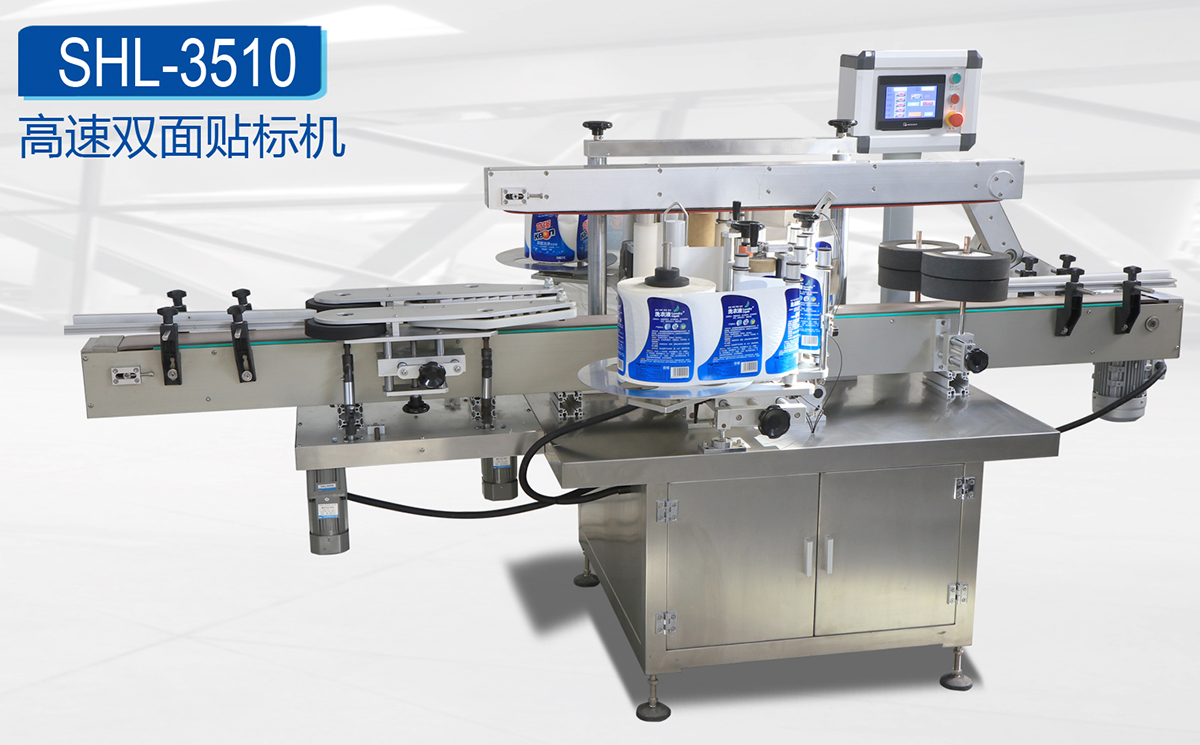

Fully Automatic Double Side Flat Square Round Bottle Labelling labeling Machine

Machine functions:

1. auto double side labeling machine can be pasted with single or double sides of round bottle (short label), single or double sides of square bottle, single or double sides of flat bottle (such as shampoo, shower gel, edible oil, lubricating oil, detergent, eye medicine, etc.). It has a wide range of application and strong adaptability.

2. Dynamic synchronous tension control supply label, stable and fast supply, ensure the speed and precision of label delivery.

3. The bottle dividing mechanism uses synchronous sponge wheel for stepless speed regulation, and the bottle dividing distance can be set arbitrarily.

4. The synchronous chain is used in the calibration mechanism to ensure the stability and accuracy of the calibration.

5. The pressing mechanism is adjusted by screw, with accurate action and wide range of adjustment, which can adapt to a variety of specifications of bottles.

6. Label synchronous positioning mechanism, label positioning error is plus or minus 0.5mm.

7. Man machine interface, any abnormal man-machine display and guide troubleshooting, simple operation, anyone can easily operate and quickly use the equipment.

8. Multi point emergency stop button, which can be installed in the appropriate position of the production line to ensure safe operation and smooth production.

9. The stripping distance of label is calculated automatically by length, photoelectricity and microcomputer. No need to adjust photoelectricity position. Any label length can be modified in man-machine interface, so it is easy to use.

10. The label does not blister because of the screw pressing, the screw pressing mechanism on the servo motor belt, and the servo motor belt below. The bottle clamping speed of the conveyor belt is about five thousandths of a second higher than the speed of labeling, which makes the label tight and flat. This is the secret that witter can ensure that the label does not blister.

I. Basic Using:
Automatic double side labeling machine belongs to the lateral labeling machine, suitable for flat bottle,  square bottle of single side & double side labeling,such as flat shampoo bottles,lubricating oil flat bottle, liquid soap ect.
 II,Application
1,For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.
2,Applicable products: Requires the side plane, side sweeping surface, the circumferential surface attached label.
3,Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.
4,Application examples: Head & Shoulders shampoo flat bottle labeling, Shell Lubricants flat bottle labeling.
III,Working Process

Core Working principle:The sensor detects the flat or round bottle after bottle to return the signal to the labeling

 control system, the control system in place to control the motor sends label and attached flat bottle or round

 bottle labeling products subject position, flat bottle or round bottle label products through the overlying unit, the

 label affixed to the product coated on a label attached to the action is completed.

Procedure: put the product (which can be accessed line) -> Product delivery -> Products minutes away -> Product Guide is -> Labeling (device automatically) -> Cover Standard -

3、 Technical parameters

4、 Workflow

Bottle separation → correction → pressing → labeling → reinforcing label adhesion → finished product

Sample:

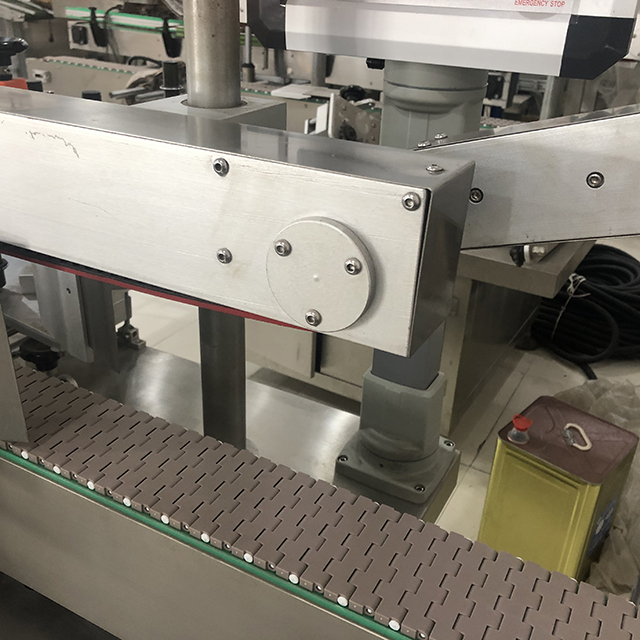

Machinery Details:

 Related Products:

We persist in the principle of "Quality First, Customer Satisfaction" and will create more excellent machine to meet customers' requirement by full passion and first-class service. Moreover, we can also design according to your drawing and samples.

We are one of the leading China machine manufacturers and suppliers. Welcome to consult the price list and the quotation with us. E-mail: alisa@kxite.com
