Paper Roll To Sheet Paper Sheeting Machine Grey Paper Cut by Cutting Machine

Driven by AC servo motor.
• Cutting paper stably in high speed.
• Germany precise bearing and cutting knife assure the high precision.
• Touch interface is simple to operation.
• Reasonable inflection device ensures smooth of paper.
• This machine is widely used in paper making, paper products processing and printing industry, and will improve efficiency and increase benefit for your company.
• It's achievable for casting body to realize higher speed and more stability, thus significantly improve the service life of parts.

Model Of Cutting Paper:	The up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper:	60-550GSM
Cutting Length Range:	450-1650mm
Availability:

Quantity:



Inquire Add to Basket

Model:

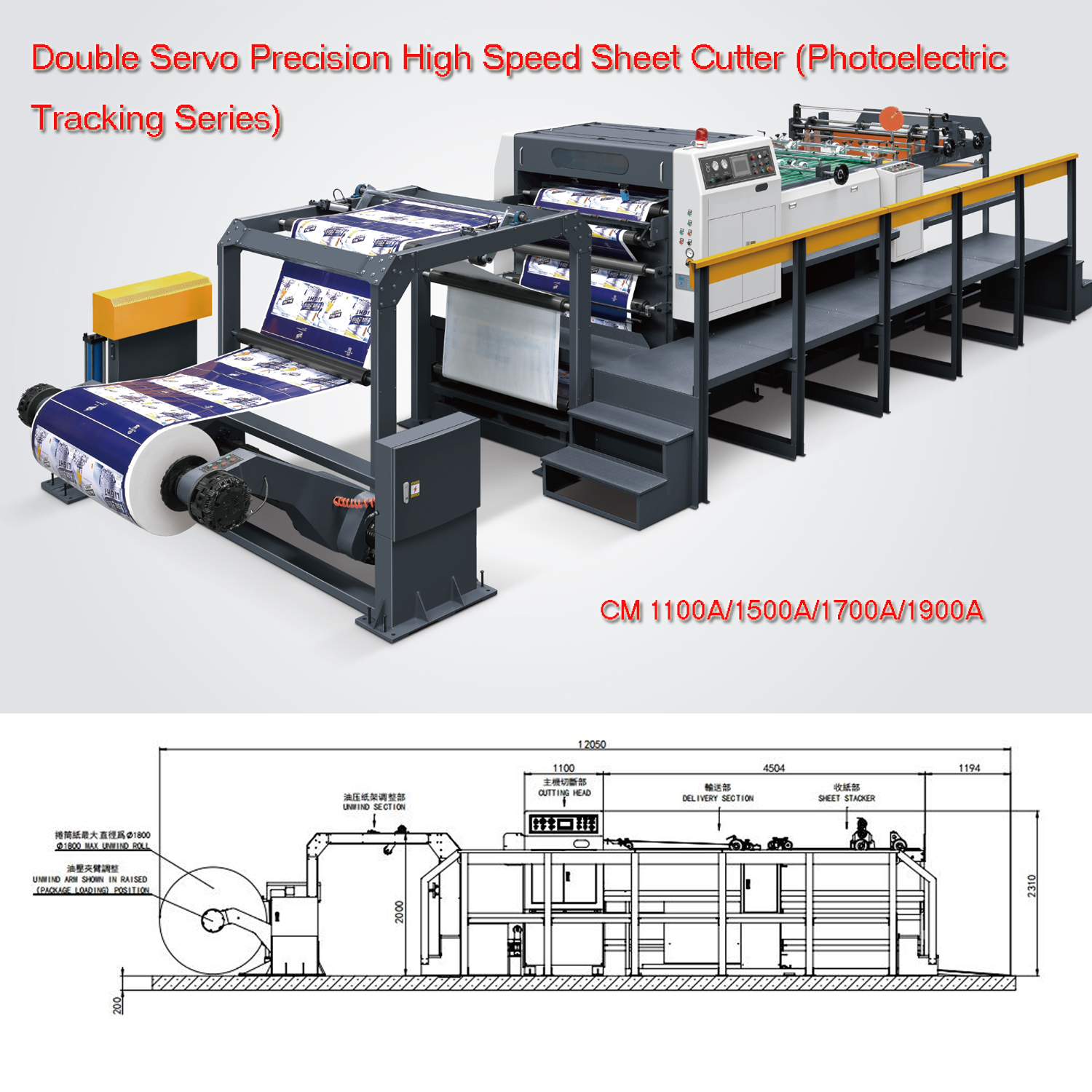

CM 1100A/1500A/1700A/1900A
Brand:
KXITE

Product Description

CM-1100/1500/1700/1900A Servo Precision Sheet Cutter apply the advanced technique of Germany and England. The computer control system apply AC servo motor and AC transducer. The conveyer belt apply NITTA from Japan. The pneumatic vibrator apply FINOLEVA from Switzerland. The electrical system adopts MOELLER&OMRON, the speed of cutting paper is fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The touch screen makes the operation easy. The anticurve rack assures the paper flat. The machine is very popular in the paper making and printing industry.

Partial Introduction

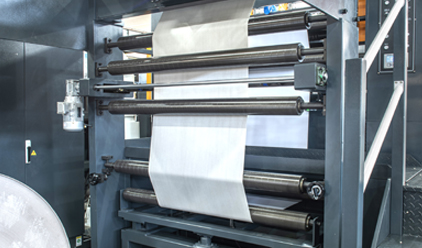

Auto anti curve

Paper pre-press device

Three sets of slitting knife are used for trimming and middle slitting

Cutting knife unit

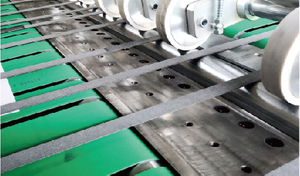

Anti-static device

Conveying unit

Automatic stacker

Main Technical Parameter

Model	CM-1100/1500/1700/1900A
Model Of Cutting Paper	The up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper	60-550GSM
Cutting Length Range	450-1650mm
The format of slitting	1 sheet(Optional)
Cutting Precision	Cutting length≤1000mm: +/-0.5mm Cutting length>1000mm: +/-0.1%
Max. Cutting Meter Speed	300m/min
Max. Cutting Speed	400cuts/min
Max. Scroll Diameter	1800mm
Max. Paper Cutting Width	1100mm/1500mm/1700mm/1900mm
Max. Paper Piling Height	1500mm
The Request For Air Compressor	0.8Mpa
Power Consumption	380V/220V×50Hz
Gross Weight	9000kgs/11000kgs/13000kgs/15000kgs
Full-load Power	22/26/30/35KW

High-precision single knife cutting machine	1SET
Paper prismatic automatic adjustment system	1SET
Paper transporting equipment	1SET
Automatic paper trimming and collecting machine	1SET
Electrical controlling system	1SET
Driving motor system	1SET
Accessory by machine	1SET
Cone sheftless mill roll stand	1SET
Paper tension controller	1SET
Operation system:LCD panel by operator	1SET
Main drive system:AC servo motor	1SET

Our company reserves the right to change technical parameter without futher notice.
