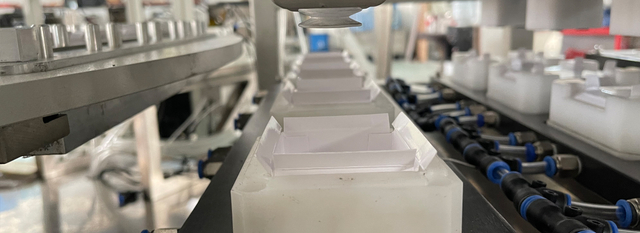

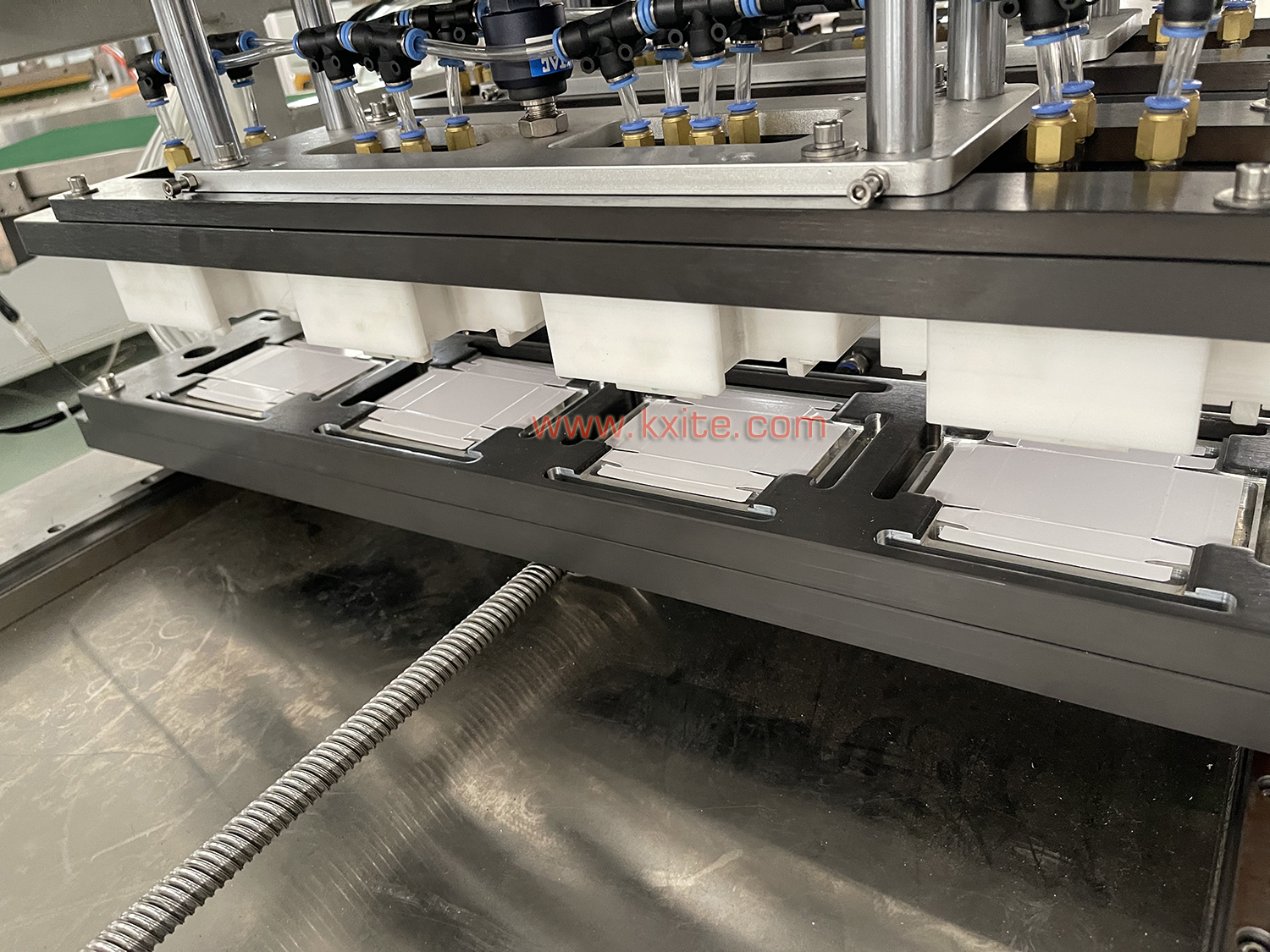

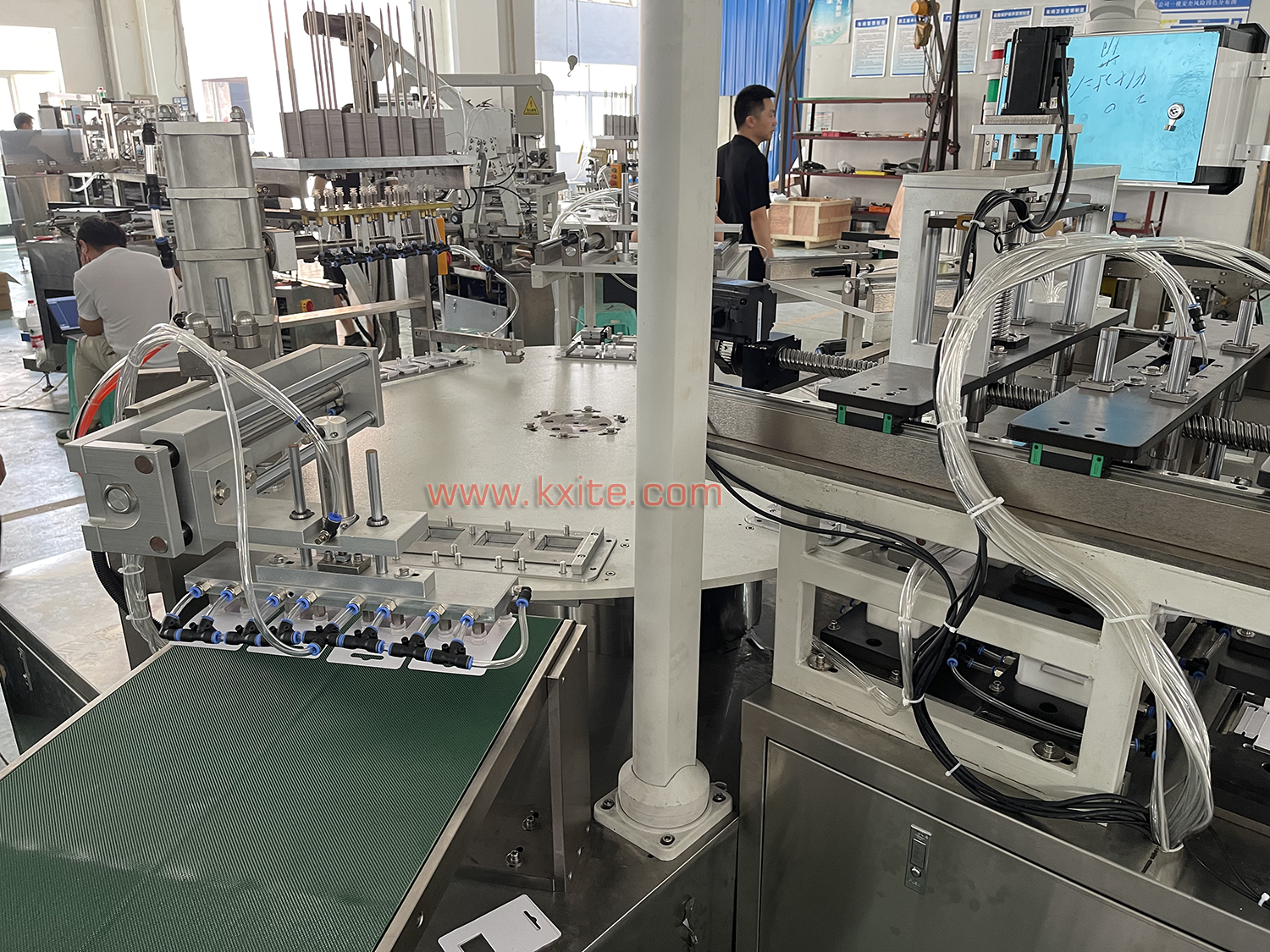

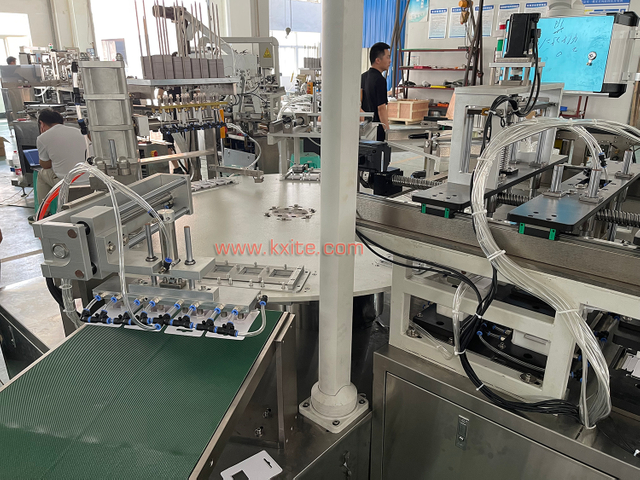

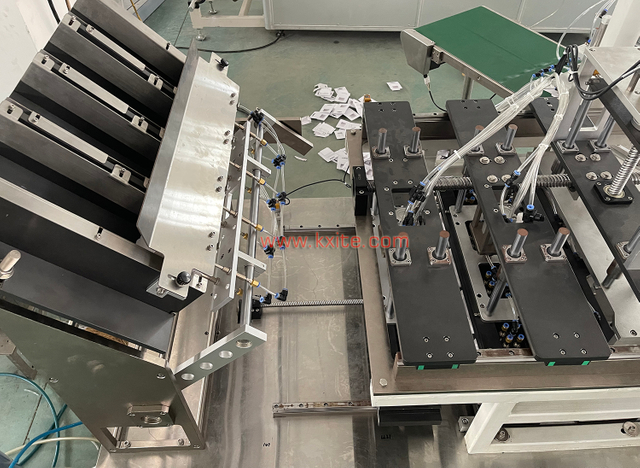

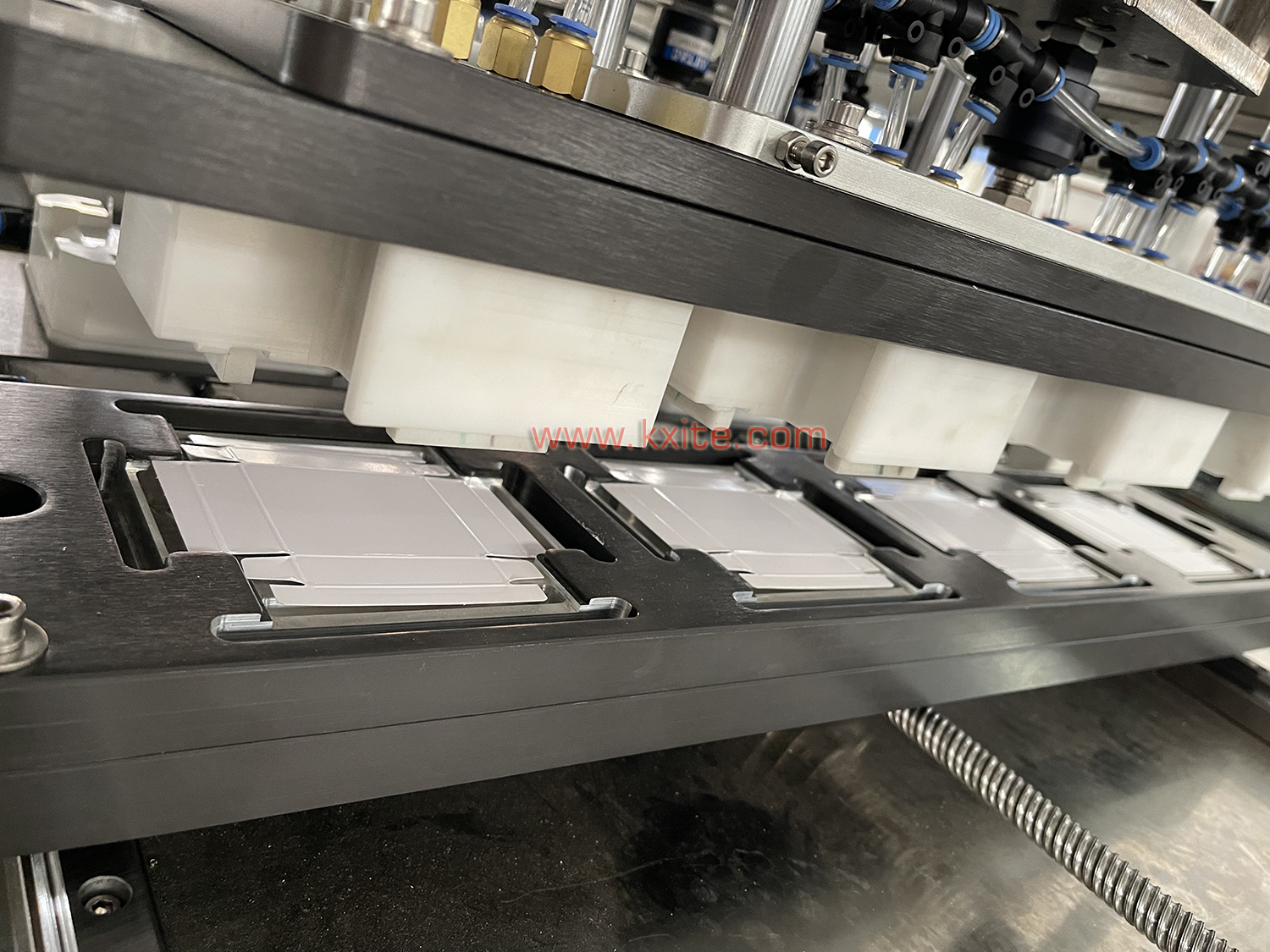

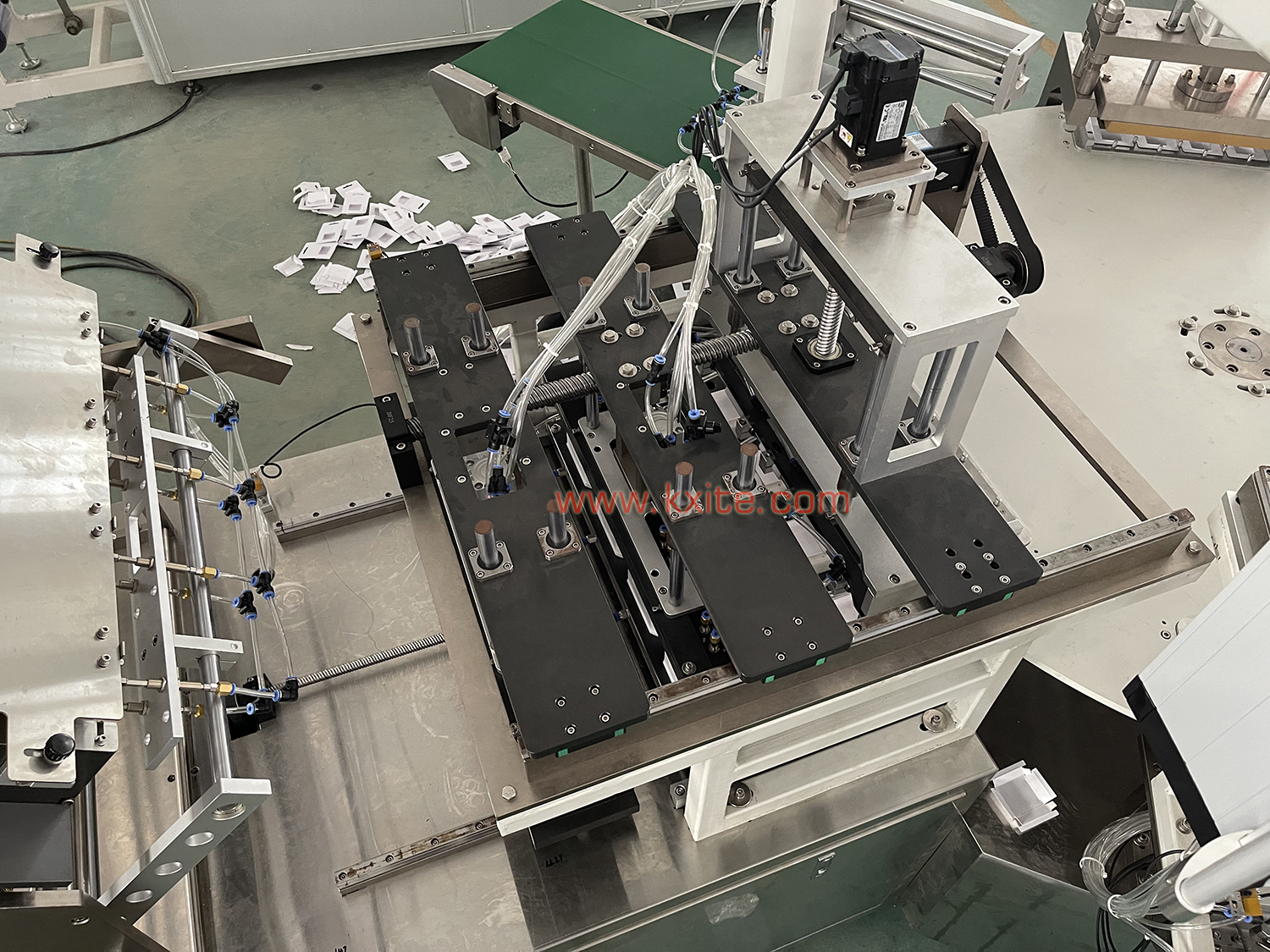

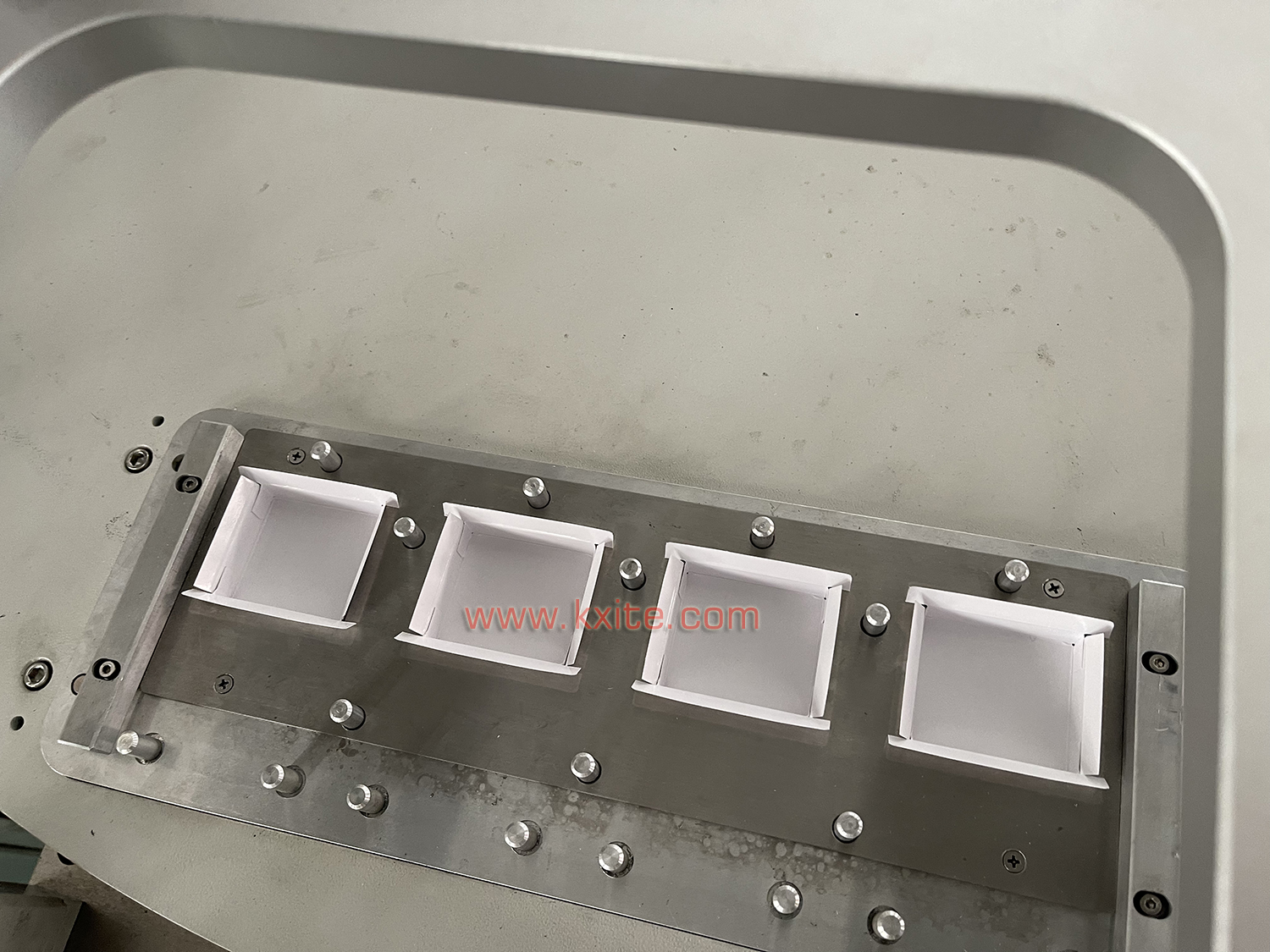

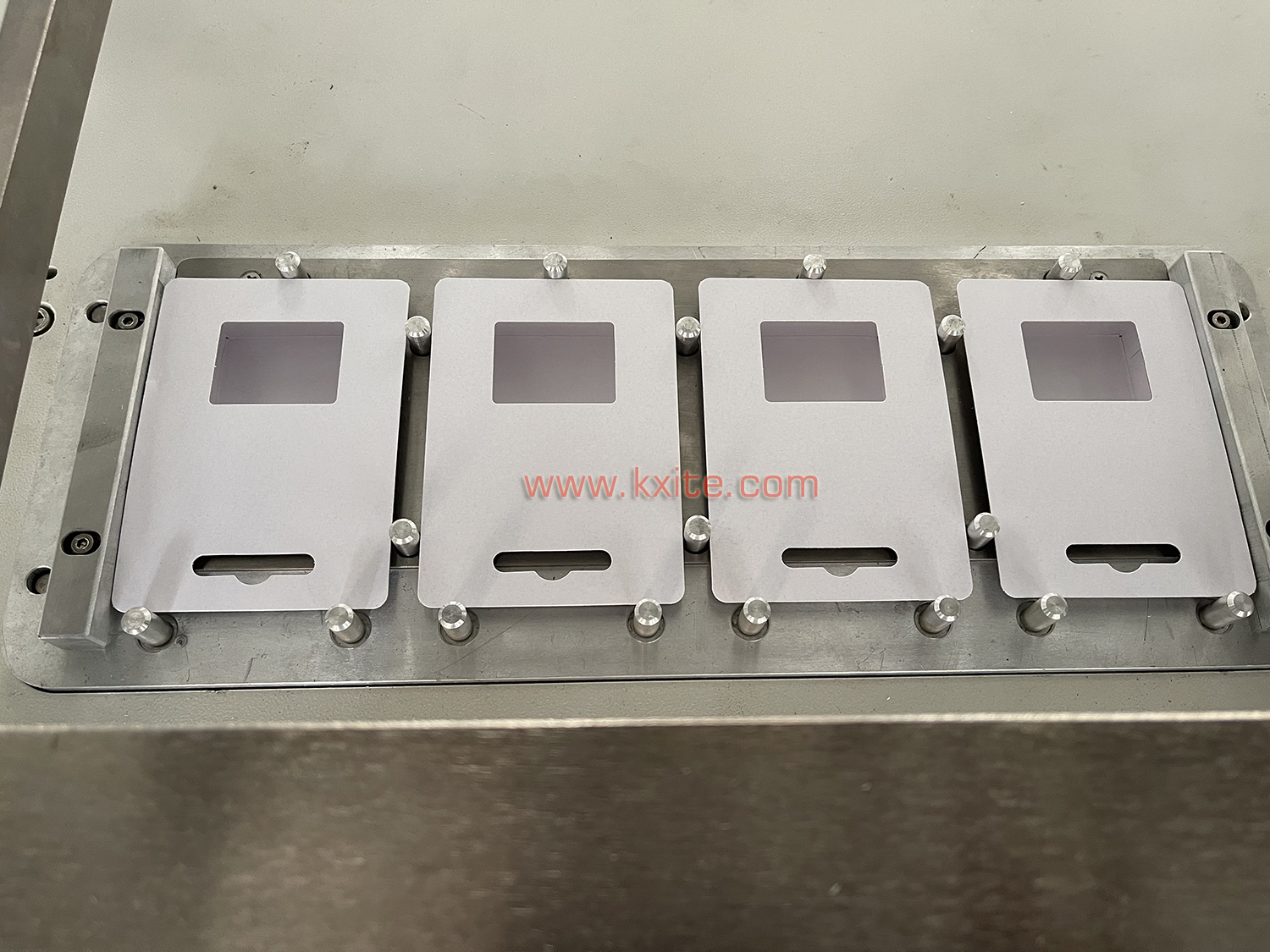

KXT-350P automatic all paper blister packing machine is designed to do all paper blister packages. The machine can form paper card blisters, fold flaps, spray adhesive (optional), fill products(optional), and seal blisters to ready-made cards automatically. The blisters are made of paper cards and cardboards, not plastic. The blister packages consist of a cardboard blister tray and a backing paper card. They are environmentally friendly packages.
Features:
- Blisters and packages are made of paper cardboards.
- Reliable electrical equipment like Schneider PLC, Schneider touch screen, Schneider servo drive, Schneider low voltage components ensure the stability.
- Suitable for cardboard blister tray with flaps or without flaps.
- Paper blisters are formed accurately.
- Driven by servo motors to ensure the machine runs accurately.
- Alarm when the forming material or cards run out.

Model	KXT-350P
Max. forming area	350 * 130 mm
Max. Sealing area	350 * 180 mm
Packing capacity	6-10 cycles/min
6-10 cycles/min	380V 50/60Hz 3phase
Power consumption	6 kW
Air pressure	0.5-0.8 MPa
Air consumption	0.5 CBM/min
Forming material	White cardboard, 200 - 400 gsm
Forming material	PVC, PET, PS, thickness 0.15-0.5mm
Machine shell material	Stainless steel
Machine dimension	L3080 x W2130 x H1895 mm
Overall Weight	1700 kgs
