1080TRP
KXITE
8449009000
Automatic Paper Cup/box/Label/Tags/Hangtags Stripping Blanking Machine
Main Features
Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency of die-cutting products in paper or plastic materials. It applies to print & pack industrial, post-press, after paper creasing and die cutting.This stripper machine make your scrap removal efficient after the die-cutting process. The die-cut strip machine applies to the production lines of hang tags, paper box, paper cup, food box, plastic box, and so on.
1. Taking out finished products after die cutting process,for waste stripping.
2. Applied for many die-cut product such as labels, hang tags, business cards, gift boxes, food boxes,
paper cups and other die cutting products in paper or plastic, PU leather.
3.Automatically taking out product with manipulator arm and stack product onto delivery belt.

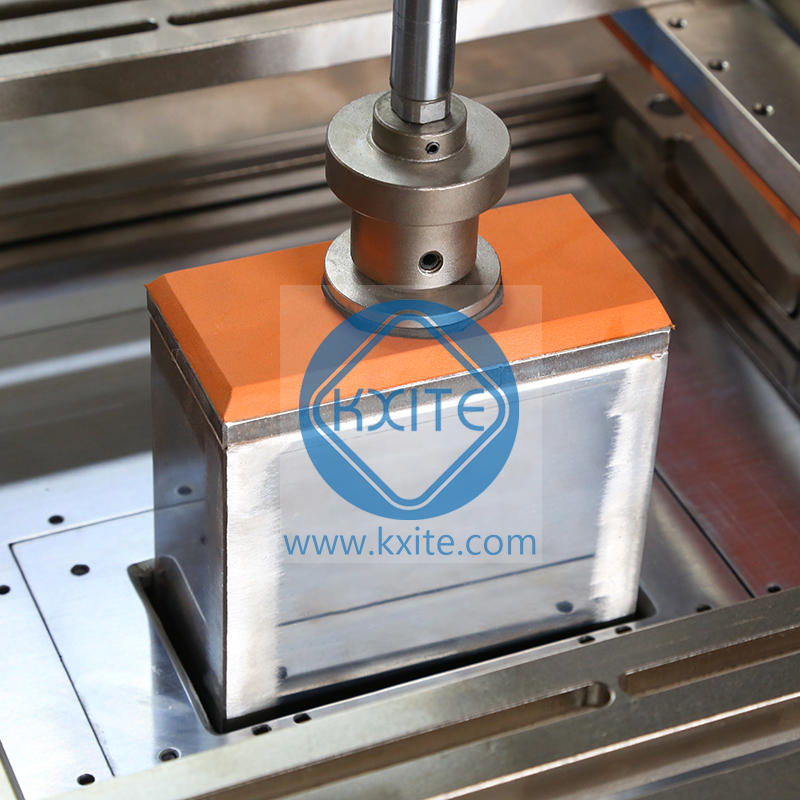

4. Rotary head of stripping to take out the opposite direction die cutting products easily .
5. Collection station to remove the products off the machine automatically.
6. PLC controlled with smart & easy operation.

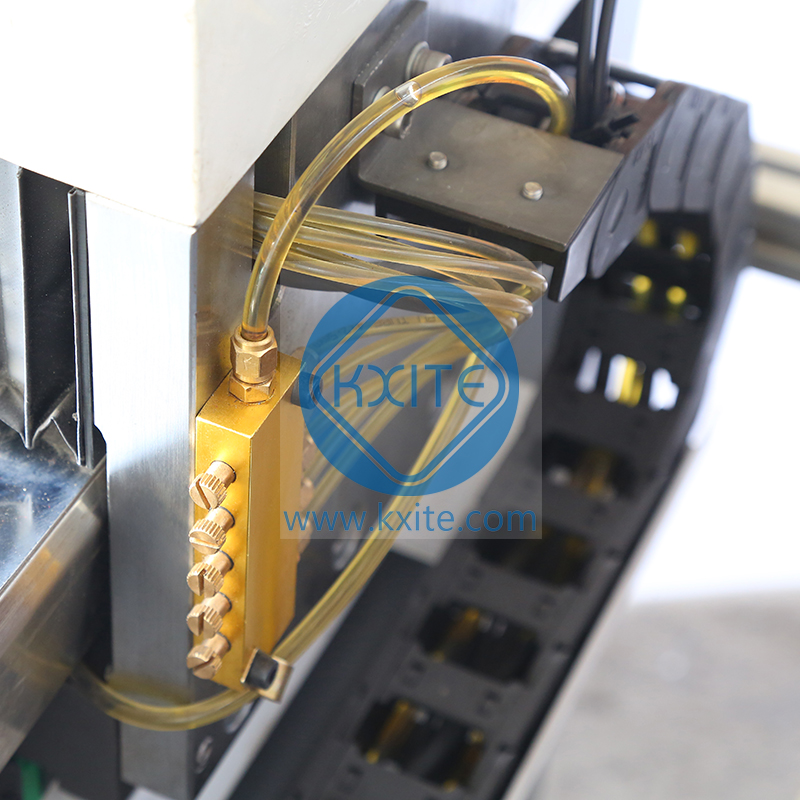

7. Automatic lubrication system for machine better maintenance.
8. Different shapes can be custom-made as customer requirement.
| Model | QDQF-920TRP | QDQF-1080TRP |
| Machine Size | L4200 x W2800 x H1950 | L4600xW3000xH1950 |
| Max sheet size (X x Y) mm | 920 x 680 | 1080 x 780 |
| Min sheet size (X x Y) mm | 550 x 400 | 650 x 450 |
| Max pile height / mm | 100 | 100 |
| Min pile height / mm | 40 | 40 |
| Work table height mm | 850 | 850 |
| Max product size to be punched out | 360 x 360 | 390 x 390 |
| Min. product size to be punched out | 30*30 | 30*30 |
| Stripping speed times/min | 15-22 | 15-22 |
| Max. force (bar) | 70 | 70 |
| Air consumption L/min | 5 | 5 |
| Manipulator Grip Range /mm | 30-280 | 30-300 |
| Manipulator Grip Weight | 50-1500g | 50-1800g |
| Max Power | 6.9kw 380V | 6.9kw 380V |
| Net Weight | 3.4T | 3.8T |
| Package Size | 2000x1800x1900 | 2000x1800x1900 |
| 2700x1950x2250 | 3100x2250x2250 | |
| Gross Weight | 3.6T |
