DPP-150H
KXITE
8422303000

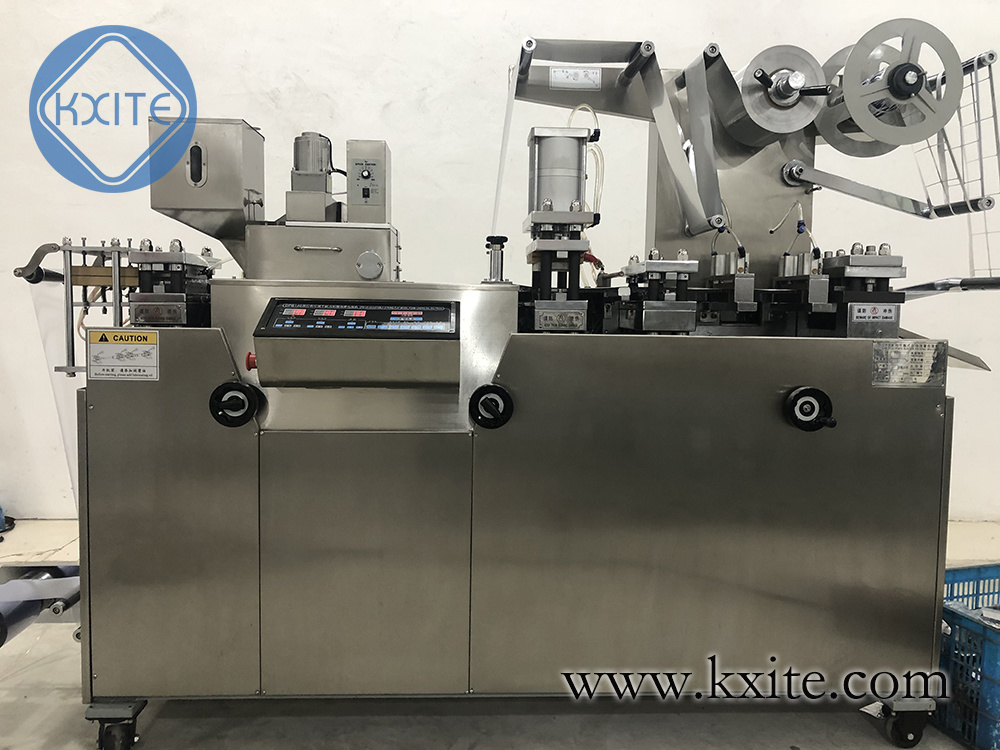

DPP-150H is a flat-plate aluminum-plastic blister packaging machine which integrates many functions including PVC feeding, PVC heating, PVC forming, PTP feeding, sealing of PVC and PTP, batch number printing, indentation line making, etc. It is suitable for all kinds of capsules, tablets, sugar coated tablets, honey pills, injections, ampoules, etc. The products have the characteristics of long shelf life, good sealing performance, beautiful appearance, safety and hygiene, conforming to the GMP production standards
FEATURES

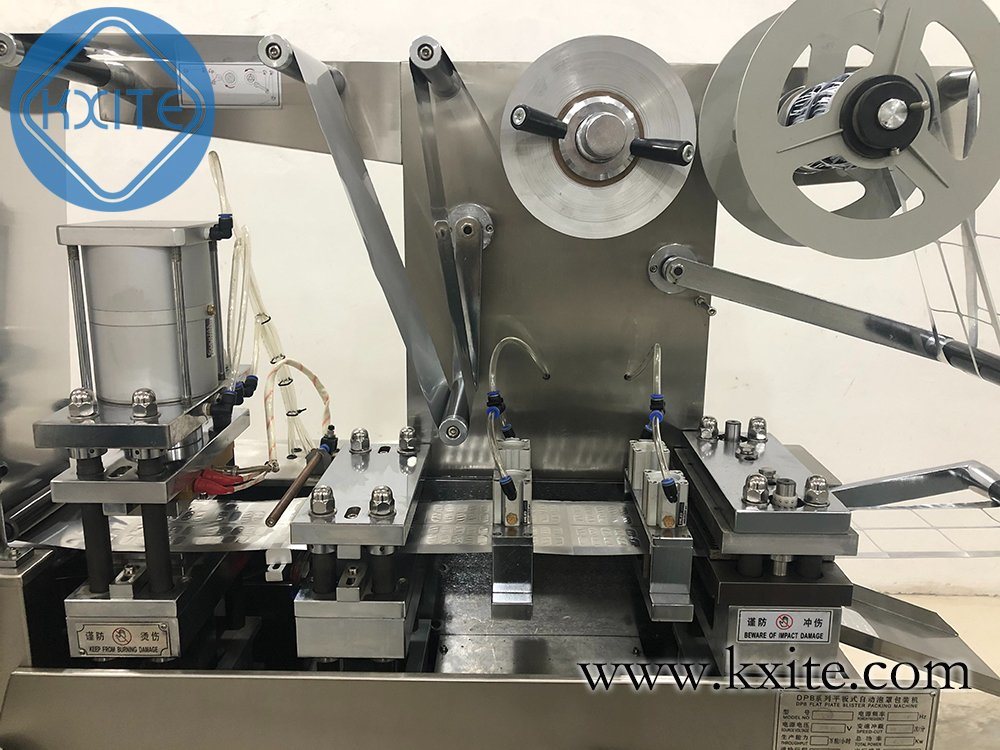

1.Forming, heating sealing, batch marking, impression and cutting are with Rack mandrel for exact and easy fixed position. it is equipped with ruler for easy correction and accuracy orientation.
2. Mechanical hand traction: it adopts double rod of pendulum device which can increase the stroke travel range,it widely is suitable for all kinds of size packaging of blister.Plate heating, positive forming, upper and lower web plates, heating sealing , automatic feeding, automatic impression and embossing and automatic cutting are easy and reliable operation.
3. Speed is shifted by step-less transducer; the operation panel of PC cycle (can be Adopt interface of human-machine).
Model | DPP-150H |
Punch frequency | 20-40pcs/min |
Capacity | 3000-7000 plates/hour |
Max Formed area and depth | 140x110x20mm |
Standard travel range | 30-110mm (adjustable) |
Air pressure | 0.6-0.8Mpa |
Motor power | 0.75kw |
Total power | 380V/220V 50Hz 3.5kw |
Mould cooling | Tap water or recycle water |
Overall dimension (L x W x H) | 2300*750*1650mm |
Weight | 800kg |
Noise indicators | ≤75dBA |
SAMPLES
Alisa whatsapp:86-136 2587 3008
