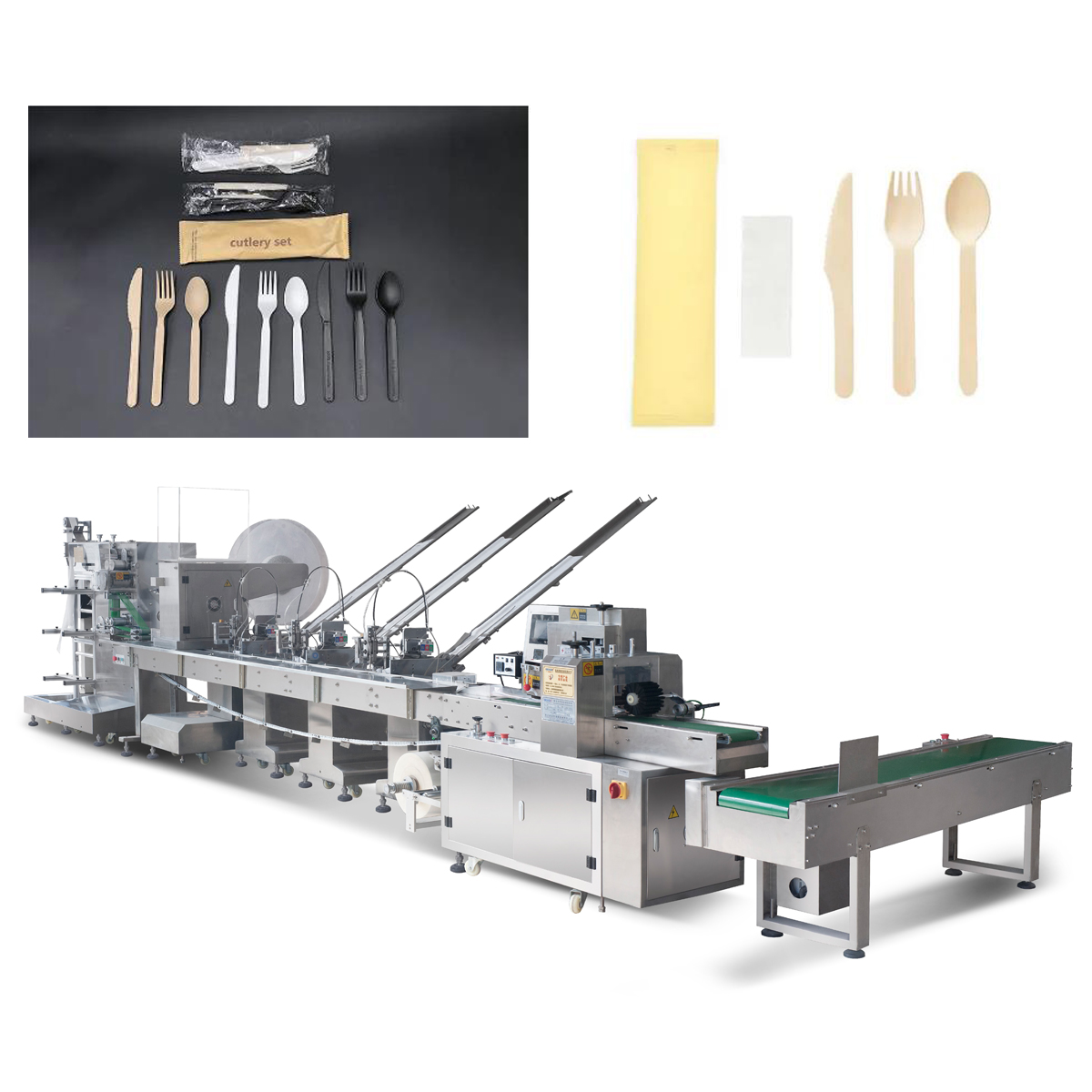

The Main Performance And Structure Features of Automatic Disposable Airline Cutlery Set Packing Machine:
Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.Interface features easy and quick setting and operation.Self failure diagnosis, clear failure display.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.Temperature independent PID control, more suitable for packaging different materials.Positioned stop function, without sticking knife or wasting film.Simple driving system, reliable working, convenient maintenance.All control is realized through software, easy for function adjusting and technical upgrade.
The machine is powered by 220V 50HZ alternating current
Main Technical Parameters
| Machine Model | HDZJ-2500 | packaging width | 30-100mm |
| packing type | Trilateral closure H | packaging height | ≤40mm |
| Tissue length | 160-330mm | Maximum packing capacity (dependingon materials) | 40-150bag/min |
Tissue width | 120-330mm | Voltage | 220v |
Packaging film thickness | 0.018-0.06mm | Total power | 3.8kw |
| Max film width | 230mm | Dimension(LxWxH) | 6200×2080×2200mm |
| Bag length | 90-330mm | Overall weight | 950kg |
The main performance and structure features
1.Control circuit uses high speed American imported smart chip , measurement precision,and with a touch- screen display , electrical fault auto-detection , simple operation , easy adjustment .
2.Mechanical formula function(memory function : reserving have been debugged procedure) ,avoid that multiple packaging similar specification products may make it debugging repeatedly ,wasting material , saving more time to improve packing efficiency.
3.Wet tissue folding machinery and packaging machinery can isolated operation(both of one is closing , another one also can running an time)
4.Touch screen control tissue feeding ,not adjust by machine.
5.Using high-quality dual-frequency simple mechanical structure , easy maintenance , long life ,less wear and tear.
6.High-precision photoelectric detection tracking ,bi-directional automatic compensation ,accurate and reliable.
7.Bag length without manual configuration ,auto-detection equipment operation , automatically set.
8.Packing speed and bag length of the dualinverter control , stepless variablespeed , arbitrary adjustment range , with the former working procedure of production line a perfect match.

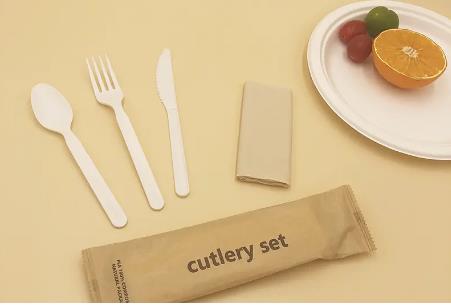

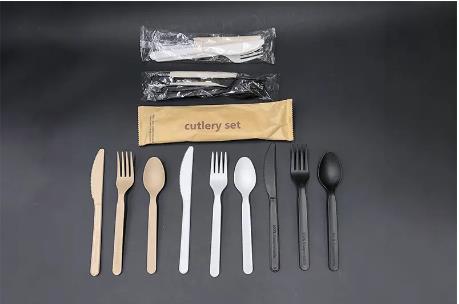

Sample
