Paper tags labels package box die cutting stripping machine

Views: 105 Author: Site Editor Publish Time: 2021-09-17 Origin: Site

Main Function:

1. Taking out finished product after die cutting process,for waste stripping. 2. Applied for many die-cut products such as labels, hang tags, business cards, gift box, food box, paper cups and other die cutting products in paper or plastic, PU leather. 3. PLC controlled with smart & easy operation. 4. Automatic lubrication system for machine better maintenance. 5. Different shape products can be custom-made as customer requirement.

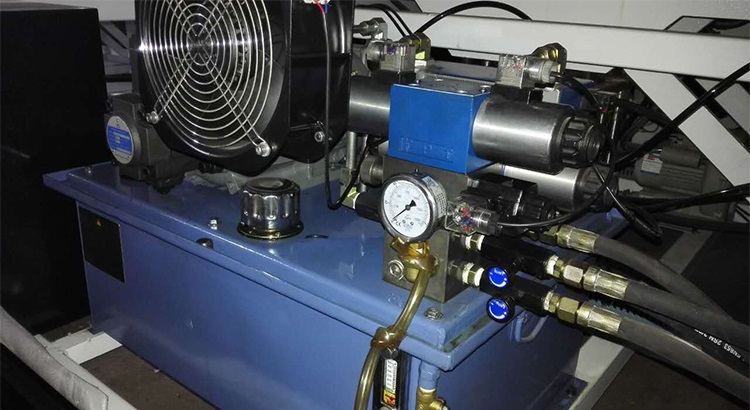

Adjustable hydraulic system

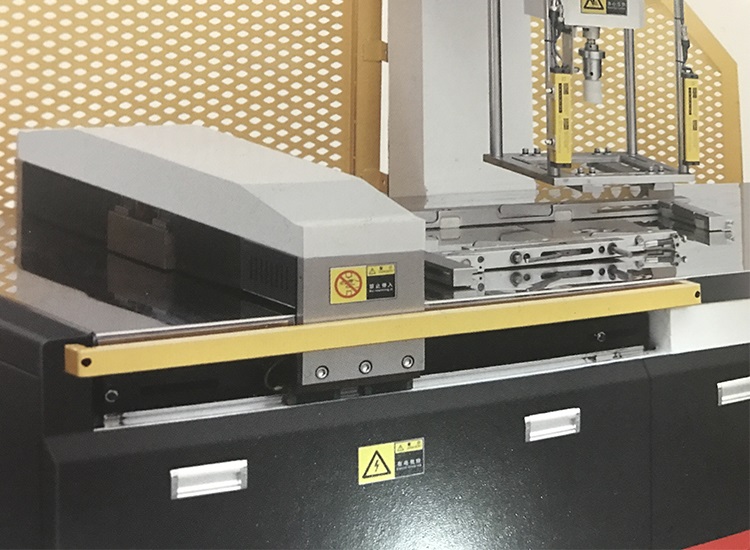

Safety fence

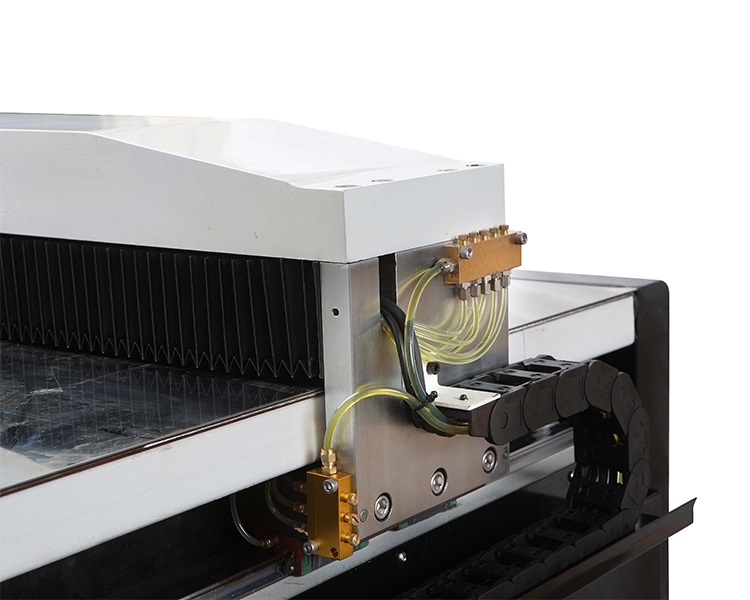

Centralized lubrication system

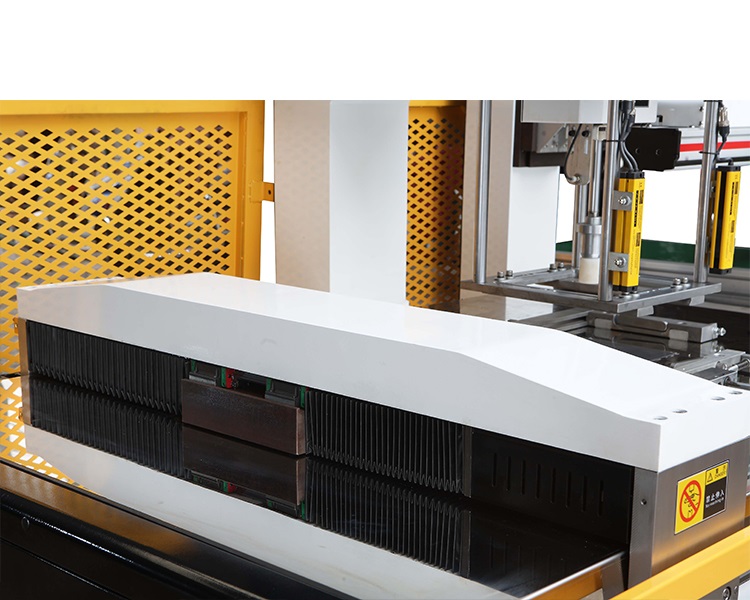

Paper gauge with hidden motor and ball screw

Products Description

Machine Technical Parameters
Model	QDQF-680	QDQF-920	QDQF-1080
Machine Size	1910x1480x1940	2400x1800x1980	2760x2050x1950
Max sheet size (X x Y) mm	680 x 480	920 x 680	1080 x 780
Min sheet size (X x Y) mm	400 x 300	550 x 400	650 x 450
Max pile height mm	100	100	100
Min pile height mm	40	40	40
Work table height mm	850	850	850
Max product size to be punched out	230*230	360 x 360	390 x 390
Min. product size to be punched out	30*30	30*30	30*30
Stripping speed times/min	15-22	15-22	15-22
Max. force (bar)	70	70	70
Air consumption L/min	2	2	2
Max Power	4.2kw 380V	4.2kw 380V	4.2kw 380V
Net Weight	1.5T	1.9T	2.3T
Package Size	2100x1500x2200	2600x1950x2250	3000x2150x2200
Gross Weight	1.8T	2.2T	2.6T

Paper tags stripping machine Paper labels stripping machine Paper Box Stripping Machine Paper package box stripping machine package box stripping machine Paper tags die cutting machine Paper labels die cutting machine Paper box die cutting machine Paper package box die cutting machine package box die cutting machine
