Dpp-260 Automatic Thermoforming Sealing Capsule Candy Ketchup Perfume Jam Chocolat Pill Tablet Capsule Disposable Syringe Automatic Blister Packaging Machine

Views: 89     Author: alisa whatsapp:86-136 2587 3008     Publish Time: 2025-06-08      Origin: Site

Dpp-260 Automatic Thermoforming Sealing Capsule Candy Ketchup Perfume Jam Chocolat Pill Tablet Capsule Disposable Syringe Automatic Blister Packaging Machine

DPP-260 is a flat-plate aluminum-plastic blister packaging machine which integrates many functions including PVC feeding, PVC heating, PVC forming, PTP feeding, sealing of PVC and PTP, batch number printing, indentation line making, etc. It is suitable for all kinds of capsules, tablets, sugar coated tablets, honey pills, injections, ampoules, etc. CapsulCN The products have the characteristics of long shelf life, good sealing performance, beautiful appearance, safety and hygiene, conforming to the GMP production standards

Product Parameters

Model
DPP-80
DPP-110
DPP-150
DPP-260
Punch frequency
10-33times/min
10-33tims/min
10-35times/min
6-50times/min
Production capacity
2400plates/hour
2400plates/hour
1200-4200plates/hour
35000-23000pcs/hour
Max. Forming area & Depth
105x70(standard depth <15mm)
115x90(standard depth <15mm)
145xll0(standard depth <15mm)
240x70x26mm
Max. Depth 25mm
Max. depth 26mm
Max. depth 26mm

Standard Stroke range
30-80mm
35-90mm
50-120mm
40-160mm
Standard plate size
80x57mm
80x57mm
80x57mm
80x57mm
Air pressure
0.4-0.6Mpa
0.4-0.6Mpa
0.4-0.6Mpa
0.4-0.6Mpa
Compressed air required
Air compressor>0.3m3/min
Air compressor>0.3m3/min
Air compressor>0.3m3/min
Air compressor>0.3m3/min
Total power supply
220V 50Hz 2.4Kw
220V 50Hz 2.4Kw
220V 50Hz 2.4Kw
380V220v 50Hz 6.2Kw
Main motor
0.75Kw
0.75Kw
1.5KW
1.5KW
PVC hard Film
0.15-0.5xll0mm
0.15-0.5X HOmm
0.15-0.5x 160mm
0.15-0.5x 160mm
PTP Aluminum film
0.02-0.035 x HOmm
0.02-0.035 x HOmm
0.02-0.035 x 160mm
0.02-0.035 x 250mm
Mould cooling
Tap water or Recycling water
Tap water or recycling water
Tap water or recycling water
Tap water or recycling water
Overall Dimension(LxWxH)
1450x590x 1100mm
1600 x 620 x1420mm
2315 x 635 x 1405mm
3000x730x1600mm
Weight
465kg
485kg
890KG
1400kg
Noise
<75dBA
<75dBA
<75dBA
<75dBA

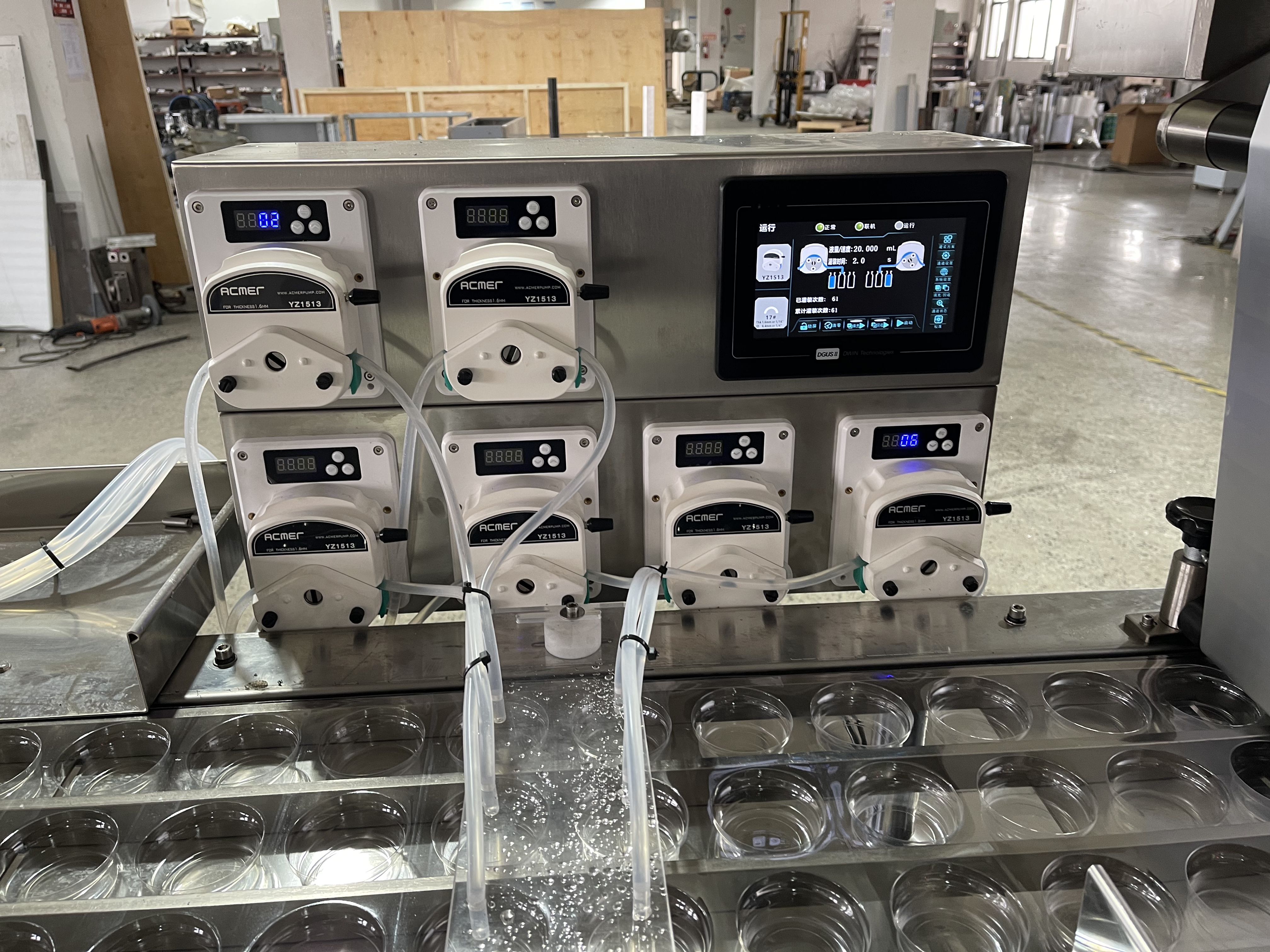

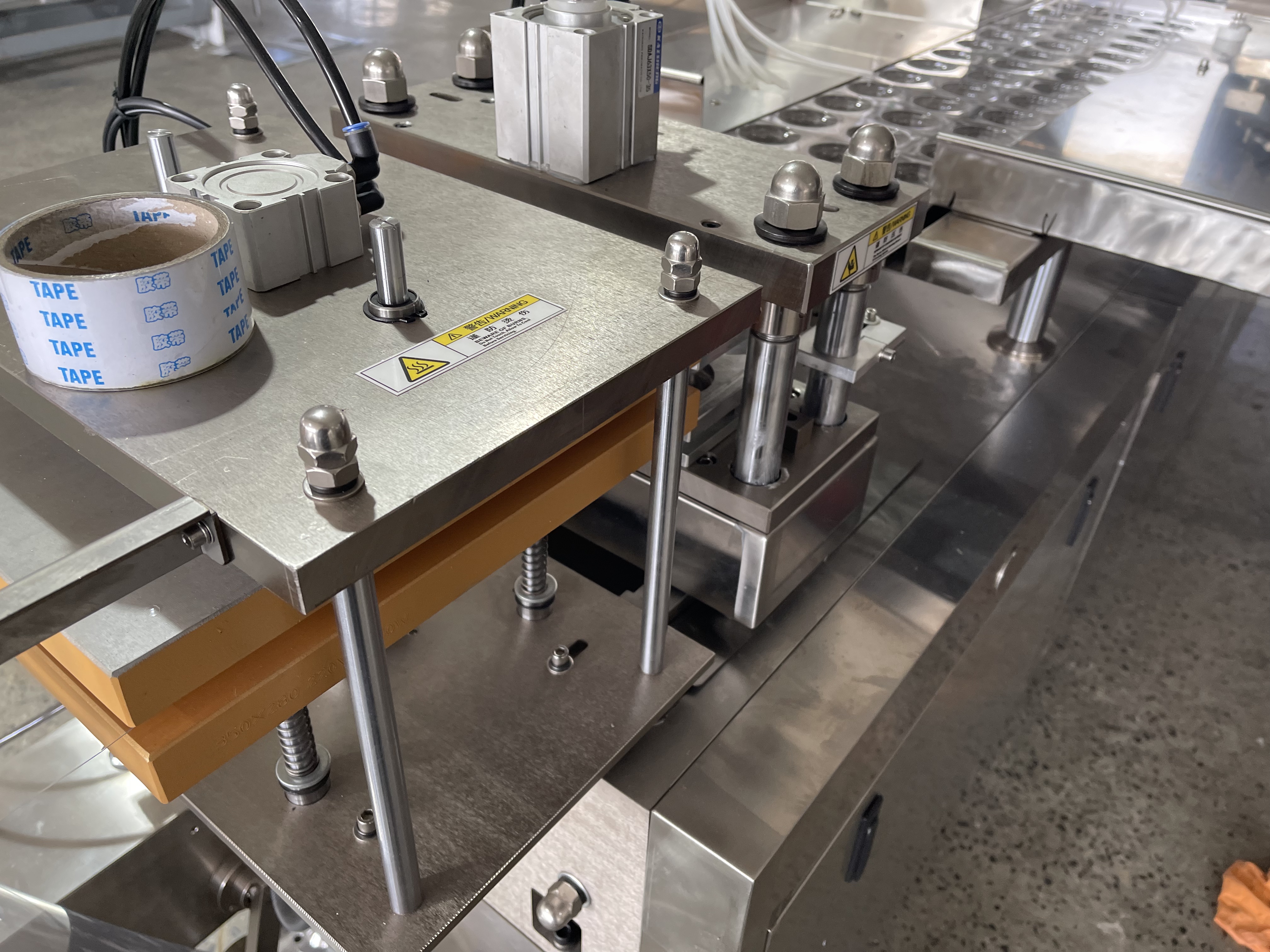

Detailed Photos

微信图片_20250309193603微信图片_20250309192654微信图片_20250309192749微信图片_20250309174813
