Usuage:
Suitable for packaging with paper and plastic in the industrial of hardware, medical equipment, toys, battery, electronic products, auto parts, cosmetic ,rubber products, dinnerware, kitchen ware.
For example :

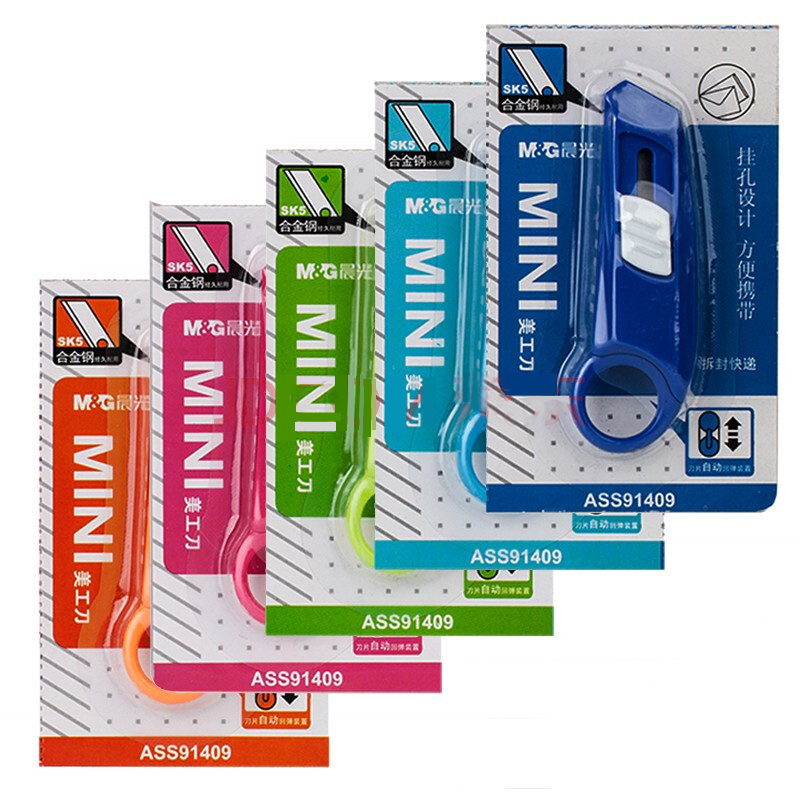

the injection, syringe, toy car, flashlight, spark plug, toothbrush , lipstick ,facial mask, chopsticks, shaver, correction fluid , ball pen, medicine and so on.
Working process:
PVC roll——PVC heating——PVC forming —— Automatic cooling —— Servo traction—— Automatic feeding (Hand-feeding) —— Feeding and inspecting cardboard —PE/ALU foil/paper card sealing —— Punching a hole —— Cutting —— Products output
Punching Frequency | 20time/min |
Adjustable Scope of Travel | 30-210 mm |
Max Forming Depth | 35-43mm |
Max Forming Area | 340x220 mm |
Total Power | 380V 50Hz 5.5Kw |
Specificationa of Packing Material(PVC) | 350x0.25(0.15~0.50mm) |
Specificationa of Packing Material(PTP) | 350x0.02mm |
Air-compressor | More Than 0.22m3/min |
Pressure | 0.5~0.7Mpa |
Machinery Dimension | 5300x1000x1900mm |
Weight | 3500Kg |
